Product Details:
|
| Condition: | Original New | Warranty: | 1 Year |
|---|---|---|---|
| Lead Time: | 1-2 Days | Application: | Indoor |
| Type: | Firewalls | MOQ: | 1 PCS |
| Brand: | Cisco | Product Status: | Stock |
| Highlight: | FirePOWER Services Cisco ASA Firewall,AES SSD Cisco Firewall Device,6GE Data Cisco ASA Firewall |
||

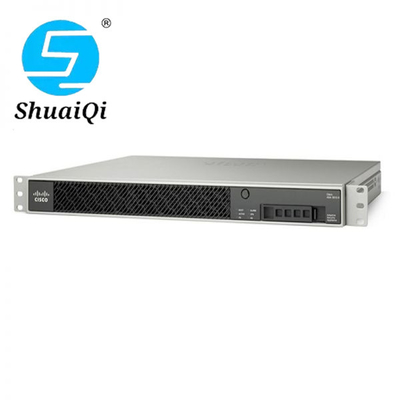

The ASA5515-FPWR-K9 is the Cisco ASA 5500 Edition Bundle ASA5515-K9 ASA 5515-X with SW, 6GE Data, 1GE Mgmt, AC, 3DES/AES.
ASA5515-FPWR-K9 Specification |
|
| Product Number | ASA5515-FPWR-K9 |
| Product Description | Cisco ASA 5500 Edition Bundle ASA5515-K9 ASA 5515-X with SW, 6GE Data, 1GE Mgmt, AC, 3DES/AES |
|
Throughput: Application Control (AVC) |
500 Mbps |
|
Throughput: Application Control (AVC) and IPS |
250 Mbps |
| Maximum concurrent sessions | 250,000 |
| Maximum New Connections per second | 15,000 |
| Supported applications | More than 3,000 |
| URL categories | 80+ |
| Number of URLs categorized | More than 280 million |
| Centralized configuration, logging, monitoring, and reporting | Multi-device Cisco Security Manager (CSM) and Cisco Firepower Management Center |
| On-Device Management | ASDM |
| Feature | Cisco ASA 5515-X w/ FirePOWER Services |
| Stateful inspection throughput (maximum) | 1.2 Gbps |
| Stateful inspection throughput (multiprotocol) | 600 Mbps |
| Triple Data Encryption Standard/ Advanced Encryption Standard (3DES/AES) VPN throughput |
250 Mbps |
| Users/nodes | Unlimited |
| IPsec site-to-site VPN peers | 250 |
| Cisco AnyConnect Plus/Apex VPN maximum simultaneous connections | 250 |
| Virtual interfaces (VLANs) | 100 |
| Security contexts(included; maximum) | 2.5 |
| High availability | Active/ Active and Active/ Standby |
|
Integrated Wireless Access Point (See Cisco AP 702 datasheet for WiFi technical details) |
N/A |
| Expansion slot | 1 interface card |
| User-accessible Flash slot | No |
| USB 2.0 ports | 2 |
| Integrated I/O | 6 GE copper |
| Expansion I/O | 6 GE copper or 6 GE SFP |
| Dedicated management port | Yes (1 GE) |
| Serial ports | 1 RJ-45 console |
| Solid-state drive | 1 slot, 120 GB MLC SED |
| Memory | 8 GB |
| System flash | 8 GB |
| System bus | Multibus architecture |
| Temperature | 23 to 104°F (-5 to 40°C) |
| Relative humidity | 10 to 90 percent noncondensing |
| Altitude | Designed and tested for 0 to 15,000 ft (4572 m) |
| Acoustic noise | 64.2 dBA max |
| Temperature | -13 to 158ºF (-25 to 70ºC) |
| Relative humidity | 10 to 90 percent noncondensing |
| Altitude | Designed and tested for 0 to 15,000 ft (4570 m) |
| AC range line voltage | 100 to 240 VAC |
| AC normal line voltage | 100 to 240 VAC |
| AC current | 4.85A |
| AC frequency | 50/60 Hz |
| Dual-power supplies | None |
| DC domestic line voltage | -40.5 to 56 VDC (-48 VDC nominal) |
| DC international line voltage |
-55 to -72 VDC (-60 VDC nominal) |
| DC current | 15A (maximum input) |
| Steady state | 65W |
| Maximum peak | 70W |
| Maximum heat dissipation |
239 Btu/hr |
| Form factor | 1RU, 19-in. rack-mountable |
|
Dimensions (H x W x D) |
1.67 x 16.7 x 15.6 in. (4.24 x 42.9 x 39.5 cm) |
| Weight (with AC power supply) | 13.39 lb (6.07 kg) |
