Product Details:
|
| Brand: | HUAWEI USG6306 | Model: | USG6306 |
|---|---|---|---|
| Ports: | 4GE(RJ45) Ports +2GE Combo Ports | 4G LTE Data Card: | Supported |
| USB 2.0 Port: | 1 | Condition: | New With 1 Year Warranty |
| Highlight: | cisco hardware firewall,cisco security appliance,cisco appliance firewall |
||

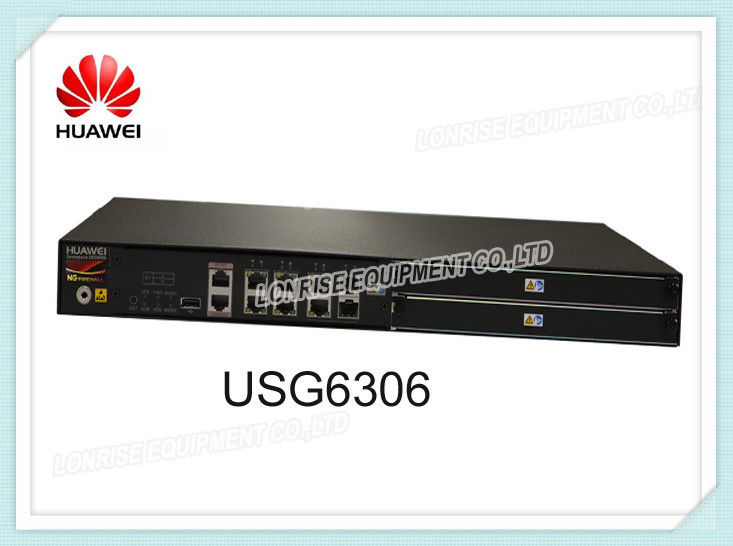

Huawei Next-Generation Firewall USG6306,4GE(RJ45)+2GE Combo,4GB Memory,1 AC Power
Huawei USG6306 is one of the Huawei USG6300 Series Next Generation Firewalls. It is designed for small to medium sizes of business, supporting 4GE (RJ45) ports, 2GE Combo port, 4GB Memory, and 1 AC Power.
USG6306 Specifications |
|
| Dimensions (W x D x H) | 442 mm x 421 mm x 44.4 mm (1 U) |
| Software Version | V500R001C30 and later & V100R001C30 and later |
| Hard disk | Optional hot-swappable 300GB or 600GB 2.5-inch SAS hard disk. The hard disk unit is hot-swappable, but the hard disk combination is not hot-swappable. |
| SPUB (the service engine) | Not supported |
| 4G LTE Data Card | Supported |
| Out-of-band management port | 1 (RJ45) |
| Console port | 1 (RJ45) |
| USB 2.0 port | 1 |
| Mandatory service ports | 2 GE Combo ports, 4 10/100/1000M autosensing Ethernet electrical ports |
| Expansion slot | 2×WSIC |
| Types of expansion cards | 8GE-WSIC-8×1GE RJ45 interface card, 2XG8GE-WSIC-8×1GE RJ45 card+2×10GE SFP+ card, 8GEF-WSIC-8×1GE SFP card, 4GE-BYPASS-WSIC-2×electrical links Bypass card |
| Short-term operating temperature | Without hard disk: -5℃ to 55℃/With hard disk(s): 5℃ to 40℃ |
| Long-term operating temperature | Without hard disk: 0℃ to 45℃/With hard disk(s): 5℃ to 40℃ |
| Storage temperature | -40℃ to 70℃ |
| Operating relative humidity | Without hard disk: 5% RH to 95% RH, non-condensing/With hard disk(s): 5% RH to 90% RH, non-condensing |
| Storage relative humidity | Without hard disk: 5% RH to 95% RH, non-condensing/With hard disk(s): 5% RH to 90% RH, non-condensing |
| Altitude | Without hard disk:5000 m/With hard disk:3000 m |
