Product Details:
|
| Brand: | HUAWEI | Model: | AC6005-8-8AP |
|---|---|---|---|
| Ports: | 6 X GE + 2 X GE Combo | AP-AC Networking: | Layer 2 Or Layer 3 Networking |
| Max Access Users: | 2,000 | Max Managed APs: | 256 |
| Highlight: | cisco network controller,cisco wifi controller |
||

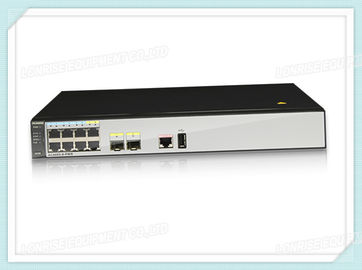

AC6005-8-8AP Huawei AC6005 Wireless Controller AC6005-8,Resource License 8AP,AC 110/220V
Huawei AC6005-8-8AP bundle includes 8 Gigabit Ethernet ports, 2 Combo ports (Rj-45 or SFP), 8 AP licenses.
The Huawei AC6005 series access controller is ideally design for small to medium size enterprise to provide wired and wireless services for office network.
Moreover, Huawei AC6005 wireless access controller delivers 4Gbit/s forwarding capacity, supports up to 128 access points, up to 2048 access users, and easily scales as needed. It also provides most cost-efficient mobility solution and simplify mobility management.
| Product Code | AC6005-8-8AP |
| Ports | 6 x GE + 2 x GE Combo |
| Power Supply | AC |
| Forwarding Capability | 4 Gbit/s |
| Maximum Number of Managed APs | 256 |
| Maximum Number of Access Users | 2K |
| AP-AC Networking | Layer 2 or Layer 3 networking |
| Forwarding Modes |
Direct forwarding (distributed forwarding or local forwarding) or tunnel forwarding (centralized forwarding) |
| AC Active/Standby Mode | 1+1 HSB or N+1 backup |
| Dimensions (W x D x H) | 320 mm x 233.6 mm x 43.6 mm |
| Net Weight | 2.05 kg |
| Technical specifications |
*Dimensions (H x W x D):43.6 mm x 320 mm x 233.6 mm *Weight: 2.9 kg *Operating temperature: –5oC to 50oC *Storage temperature: –40oC to +70oC *Humidity: 5% to 95% *Input voltage: 100 V AC to 240 V AC; 50/60 Hz *Maximum voltage range: 90 V AC to 264 V AC, 47 Hz to 63 Hz *Maximum power consumption: 163.6 W (device power consumption: 39.6 W, PoE: 124 W) |
| Interface type |
*8 x GE interfaces, among which the last two are multiplexed with two optical interfaces as combo interfaces *One RJ45 serial maintenance interface *One Mini USB serial maintenance interface |
| LED indicator |
*Power module indicator (PWR): indicates the power-on status of the device. *System running status indicator (SYS): indicates the running status of the device. *Service network port indicator: indicates the data transmission status, interface rate, and PoEstatus of a network port. |
| Number of managed APs | 256 |
| Number of SSIDs | 16K |
| Number of APs controlled by each license | 1, 8, 32 |
| Number of access users | Entire device: 2K |
| User group management |
The AC supports 128 user groups: *Each user group can reference a maximum of 8 A CLs. *Each user group can associate with a maximum of 128 A CL rules. |
| Number of MAC addresses | 4K |
| Number of VLANs | 4K |
| Number of ARP entries | 4K |
| Number of routing entries | 8K |
| Number of multicast forwarding entries | 2K |
| Number of DHCP IP address pools | 64 IP address pools, each containing a maximum of 8K IP addresses |
the recommended Optical Transceivers for AC6005-8-8AP.
| Model | Description |
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45) |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE,S ingle-mode Module (1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
