Product Details:
|
| Model: | C8300-1N1S-4T2X | Multicore Processors: | Intel X86 CPU With 8 GB Memory Default |
|---|---|---|---|
| Embedded IPsec VPN Hardware Acceleration: | Up To 5 Gbps Of IPSec Internet Mix (IMIX) Traffic | Flash Memory Support: | 8-GB Flash |
| Slots: | 1 SM 1 NIM 1 PIM | DRAM: | 8 GB |
| Storage (M.2 SSD) Default: | 16 GB | SD-WAN IPsec Throughput: | 4.3Gbps |
| Condition: | Brand New | Warranty: | 1 Year |
| Payment: | TT, Paypal, Alipay | ||
| Highlight: | Cisco Catalyst 8300 Series Edge Platforms,C8300-1N1S-4T2X |
||

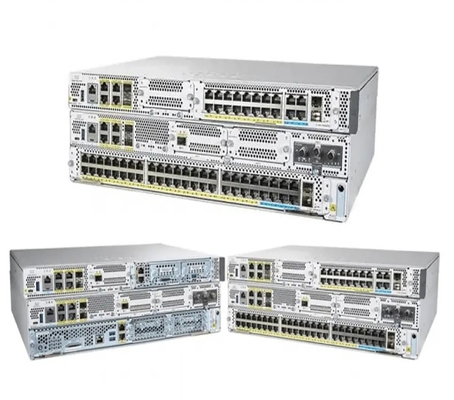

The Catalyst 8300 Series Edge Platforms have a wide variety of interface options to choose from—ranging from lower and higher module density with backward compatibility to a variety of existing WAN, LAN, voice, and compute modules. Powered by Cisco IOS XE, fully programmable software architecture, and API support, these platforms can facilitate automation at scale to achieve zero-touch IT capability while migrating workloads to the cloud. Catalyst 8300 Series Edge Platforms also come with Trustworthy Solutions 2.0 infrastructure that secures the platforms against threats and vulnerabilities with integrity verification and remediation of threats.
The Catalyst 8300 Series Edge Platforms are well suited for medium-sized and large enterprise branch offices for high WAN IPSec performance with integrated SD-WAN services.
Table 2 shows the comparison.
|
Product Code |
||
|
Product Description |

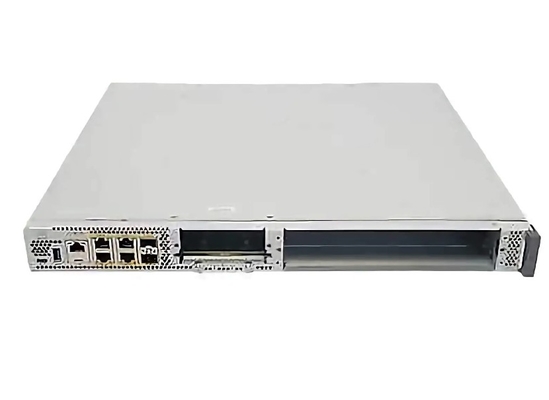

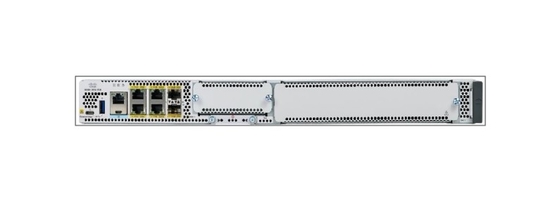

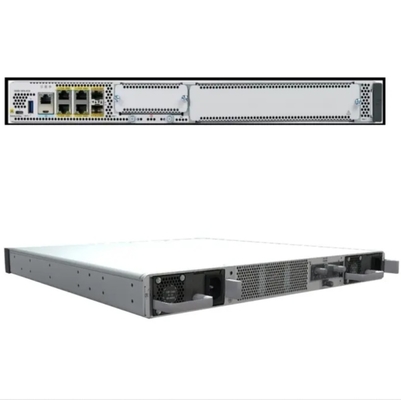

C8300 1RU w/ 10G WAN (1 SM slot and 1 NIM slot, and 2 x 10-Gigabit Ethernet and 4 x 1-Gigabit Ethernet ports) |

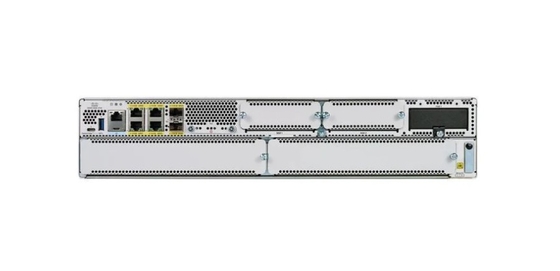

C8300 2RU w/ 10G WAN (2 SM and 2 NIM slots, and 2 x 10-Gigabit Ethernet and 4 x 1-Gigabit Ethernet ports) |
|
Multicore processors |
Intel x86 CPU with 8 GB memory default |
Intel x86 CPU with 8 GB memory default |
|
Embedded IPsec VPN hardware acceleration |
Up to 5 Gbps of IPSec Internet Mix (IMIX) traffic |
Up to 5 Gbps of IPSec Internet Mix (IMIX) traffic |
|
DRAM |
8 GB |
8 GB |
|
SD-WAN overlay tunnels scale |
6000 |
6000 |
|
SD-WAN IPsec Throughput (1400Bytes, clear text) |
Up to 15Gbps |
Up to 18Gbps |
|
SD-WAN IPsec Throughput (IMIX*, clear text) |
4.3Gbps |
5Gbps |
|
Slots |
1 SM 1 NIM 1 PIM |
2 SM 2 NIM 1 PIM |
C8300-1N1S-4T2X Specifications |
|
|
Part number |
C8300-1N1S-4T2X C8300-1N1S-6T |
|
Dimensions (H x W x D) |
1.73 in. x 17.50 in. x 16.25 in. |
|
Rack Units (RU) |
1RU |
|
Chassis weight with 2X AC power supplies and fan tray |
20 lbs |
|
Acoustics: Sound pressure (Typical/maximum) |
49 dBa/71 dBa |
|
Acoustics: Sound power (Typical/maximum) |
60 dBa/82 dBa |
|
Input voltage |
AC: 85 to 264 VAC DC: -40 to 72V; 48V nominal |
|
Operating temperature |
32 to 104°F (0 to 40°C) |
|
Storage temperature |
-40 to 150°F (-40 to 70°C) |
|
Relative humidity operating and nonoperating noncondensing |
Ambient (noncondensing) operating: 5 to 85% Ambient (noncondensing) nonoperating and storage: 5 to 95% |
|
Altitude |
0 to 10,000 feet (0 to 3050 meters) |
|
Mean Time Between Failures (MTBF) |
536,060 hours |
