Product Details:
|
| Model: | SFP-10G-LR-S | Transceiver Form Factor: | SFP+ |
|---|---|---|---|
| Connector Type: | LC | Wavelength: | 1310nm |
| Reach: | 10km | Data Rate: | 10 Gbps |
| Condition: | Brand New Sealed | Warranty: | 1 Year |
| Payment: | T/T, Western Union, Paypal | Shipment: | DHL, Fedex, UPS |
| High Light: | 10GBASE-LR SFP GLC Module,Cisco SFP GLC Module,SFP-10G-LR-S Cisco SFP GLC Module |
||

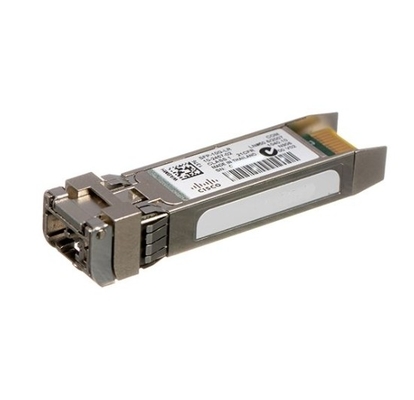

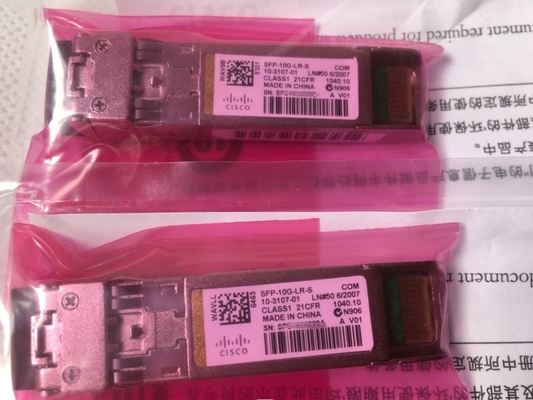

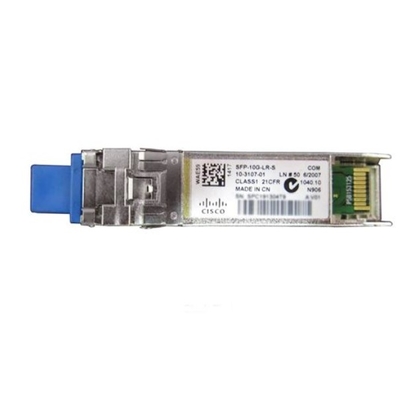

his Cisco SFP-10G-LR-S compatible SFP+ transceiver provides 10GBase-LR throughput up to 10km over single-mode fiber (SMF) using a wavelength of 1310nm via an LC connector. It is guaranteed to be 100% compatible with the equivalent Cisco transceiver.
Table 1 shows the Specs.
| SKU | SFP-10G-LR-S= |
| Connector | LC |
| Form Type | SFP+ |
| Cable Type | SMF |
| Distance (Max.) | 10km |
| Interface Details | 10GBase LR |
| Dimension (HxWxD) | 1.2 in. x 2.75 in. x 4.75 in. |
SFP-10G-LR-S= provides the following features:
①Duplex LC connector
②Support hot-pluggable
③Metal with lower EMI
④Excellent ESD protection
⑤DFB Transmitter and PIN Receiver
⑥Distance up to 10km on 9/125um SMF
⑦Single 3.3V power supply and Low power dissipation
⑧GR-253-CORE compliant
⑨RoHS Compliant and Lead-Free
⑩Compliant with IEEE 802.3ae
⑪Compliant with SFP+ MSA: SFF-8431 Rev4.1
⑫Compliant with SFF-8472 Rev.11.0
⑬Digital diagnostic compatible with SFF-847 Rev11.0
Table 2 shows the comparison.
| Product Name | SFP-10G-LR-S= | SFP-10G-SR |
| Wavelength (nm) | 1310 | 850 |
| Cable Type | MMF | SMF |
| Distance (Max.) | 10km | 300m |
| Operating Temperature Range | 0°C to 70°C | 0°to 70°C |
SFP-10G-LR-S= Specification |
|
| Compatible OEM | Cisco |
| Connector | LC |
| Form Type | SFP+ |
| Connection | SMF |
| Reach | 10km |
| Speed Description | 10-Gigabit |
| Transceiver Type | LR |
| Wavelength | 1310nm |
| Dimension (HxWxD) | 1.2 in. x 2.75 in. x 4.75 in. |
| Temperature Range | 0°C to 70°C |
| Digital Diagnostics (DDM) | Yes |
| Hot Swappable | Yes |
| Data Rate | 8 Gbps to 11.3 Gbps |
| Interface Details | 10GBase LR |
