Product Details:
|
| Model: | SFP-10G-SR | Transceiver Form Factor: | SFP |
|---|---|---|---|
| Form Factorspeed: | Plug-in Module | Cabling Type: | Ethernet 10GBase-SR |
| Data Transfer Rate: | 10 Gbps | Optical Wave: | Length850 Nm |
| Condition: | Brand New Sealed | Warranty: | 1 Year |
| Payment: | T/T, Western Union, Paypal | Shipment: | DHL, Fedex, UPS |
| High Light: | Cisco SFP Transceiver SFP-10G-SR,10GBASE-SR SFP-10G-SR,Transceiver SFP-10G-SR |
||
The Cisco SFP-10G-SR module is the multimode 10G fiber optical transceiver, and it supports up to 400m link length when uses 4700Mhz KM MMF (OM3).

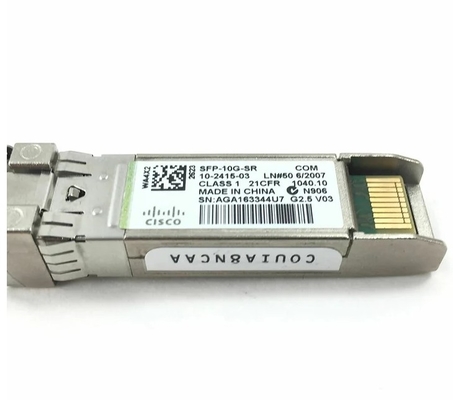

Figure 1. The appearance of SFP-10G-SR.
☆ Industry’s smallest 10G form factor for greatest density per chassis
☆ Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a Cisco switch
☆ Supports “pay-as-you-populate” model for investment protection and ease of technology migration
☆ Digital optical monitoring capability for strong diagnostic capabilities
☆ Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link
☆ Cisco quality identification (ID) feature enables a Cisco platform to identify whether the module is certified and tested by Cisco
Figure 2. The SFP-10G-SR can be supported in a switch SFP slot.
Table 1. Cisco SFP+ modules are supported on a wide range of Cisco switches and routers:
| Supported Platforms | Supported Platforms |
| Cisco ASR 1000 Series Router | ASR 901 |
| Cisco Catalyst 2960-S Series Switches | ASR 9000v Series Router |
| Cisco Catalyst 2960-X Series Switches | CRS Router |
| Cisco Catalyst 2960-XR Series Switches | MDS 9000 |
| Cisco Catalyst 3560 Series Switches | ME 4500 |
| Cisco Catalyst 3560-E Series Switches | ME 4900NCS 6000 Series Router |
| Cisco Catalyst 3560-X Series Switches | SCE 8000 |
| Cisco Catalyst 3850 Series Switches | Shared Port Adapter (SPA) |
| Cisco ASR 903 router | Catalyst 2350 and 2360 Series Switches |
| Cisco ASR 9000 Series Router | Catalyst 3100 Blade Switches |
| Cisco 7600 Series Router | Nexus 2000 and 4000 Series Switches |
| Cisco Catalyst 4500 and 4500-X Series Switches | Nexus 9000 and 9500 (modular) Series Switches |
| Cisco Catalyst 3750,3750-E,3750-X Series Switches | RF Gateway Series |
| Cisco Nexus 3000 Series Switches | Unified Computing System (UCS) Switches |
Table 2. SFP-10G-SR and SFP-10G-LR Port Cabling Specifications:
| Cisco SFP+ | Wavelength (nm) | Cable Type | Core Size (Microns) | Modal Bandwidth (MHz/km) | Cable Distance |
| SFP-10G-SR | 850 | MMF |
62.5 62.5 50.0 50.0 50.0 50.0 |
160 (FDDI) 200 (OM1) 400 500 (OM2) 2000 (OM3) 4700 (OM4) |
26m 33m 66m 82m 300m 400m |
| SFP-10G-LR | 1310 | SMF | G.652 | - | 10km |
SFP-10G-SR Specifications |
|
| Product Model | SFP-10G-SR |
| Brand | Cisco |
| Type | Cisco SFP transceiver |
| Manufacturer | Cisco Systems |
| Cable Type | Ethernet 10GBase-SR |
| Compliant Standards | IEEE 802.3ae |
| Data Link Protocols | 10 Gigabit Ethernet |
| Data Transfer Rate |
10 GBps
|
| Form Factor | Plug-in module |
| Optical Wave | Length850 nm |
| Product Type | SFP+ transceiver module |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Standards Compliance | IEEE 802.3ae, RoHS |
| Dimensions (HxWxD) | 0.4 x 0.5 x 2.2 inch |
| Warranty | Limited Warranty |
