Product Details:
|
| Model: | SFP-10G-LR | Transceiver Form Factor: | SFP+ |
|---|---|---|---|
| Connector Type: | Duplex LC | Wavelength: | 1310nm |
| Transmitter Type: | DFB | Data Rate: | 10 Gbps |
| Condition: | Brand New Sealed | Warranty: | 1 Year |
| Payment: | T/T, Western Union, Paypal | Shipment: | DHL, Fedex, UPS |
| High Light: | 10GBASE-LR SFP-10G-LR SFP Plus Module,SMF SFP-10G-LR SFP Plus Module,10 Gbps Cisco SFP Module |
||

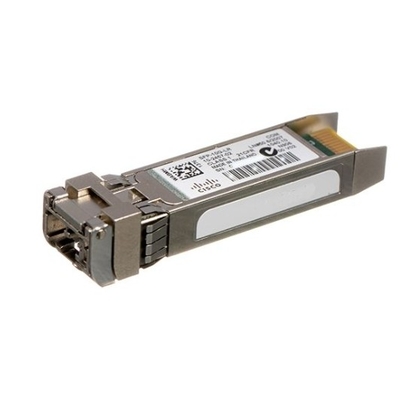

Cisco SFP-10G-LR module is the single-mode 10G fiber optical transceiver, the Cisco 10G Base-LR Module supports a link length of 10 kilometers on standard single-mode fiber (SMF, G.652) and SFP-10G-LR SFP Plus optical transceiver from Solid-Optics offers up to 10Km link length on standard single-mode fiber.
☆ Industry’s smallest 10G form factor for greatest density per chassis
☆ Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a Cisco switch
☆ Supports “pay-as-you-populate” model for investment protection and ease of technology migration
☆ Digital optical monitoring capability for strong diagnostic capabilities
☆ Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link
☆ Cisco quality identification (ID) feature enables a Cisco platform to identify whether the module is certified and tested by Cisco
Figure 1. The SFP-10G-LR can be supported in a switch SFP slot.
Table 1. Cisco SFP+ modules are supported on a wide range of Cisco switches and routers:
| Supported Platforms | Supported Platforms |
| Cisco ASR 1000 Series Router | ASR 901 |
| Cisco Catalyst 2960-S Series Switches | ASR 9000v Series Router |
| Cisco Catalyst 2960-X Series Switches | CRS Router |
| Cisco Catalyst 2960-XR Series Switches | MDS 9000 |
| Cisco Catalyst 3560 Series Switches | ME 4500 |
| Cisco Catalyst 3560-E Series Switches | ME 4900NCS 6000 Series Router |
| Cisco Catalyst 3560-X Series Switches | SCE 8000 |
| Cisco Catalyst 3850 Series Switches | Shared Port Adapter (SPA) |
| Cisco ASR 903 router | Catalyst 2350 and 2360 Series Switches |
| Cisco ASR 9000 Series Router | Catalyst 3100 Blade Switches |
| Cisco 7600 Series Router | Nexus 2000 and 4000 Series Switches |
| Cisco Catalyst 4500 and 4500-X Series Switches | Nexus 9000 and 9500 (modular) Series Switches |
| Cisco Catalyst 3750,3750-E,3750-X Series Switches | RF Gateway Series |
| Cisco Nexus 3000 Series Switches | Unified Computing System (UCS) Switches |
Table 2. SFP-10G-SR and SFP-10G-LR Port Cabling Specifications:
| Cisco SFP+ | Wavelength (nm) | Cable Type | Core Size (Microns) | Modal Bandwidth (MHz/km) | Cable Distance |
| SFP-10G-SR | 850 | MMF |
62.5 62.5 50.0 50.0 50.0 50.0 |
160 (FDDI) 200 (OM1) 400 500 (OM2) 2000 (OM3) 4700 (OM4) |
26m 33m 66m 82m 300m 400m |
| SFP-10G-LR | 1310 | SMF | G.652 | - | 10km |
SFP-10G-LR Specifications |
|
| Product Model | Cisco SFP-10G-LR |
| Data Rate | 10 Gbps |
|
Form Factor
|
SFP+ |
|
Wavelength
|
1310nm |
|
Connector
|
Duplex LC |
|
Transmitter Type
|
DFB |
|
Powerbudget
|
6.2dB |
|
Power Consumption
|
≤1W |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
|
Max Data Rate
|
10.3125Gbps |
|
Media
|
SMF |
