Product Details:
|
| Model: | JL727A | Ports: | 48x 10/100/1000BASE-T Class 4 PoE Ports 4x 1/10G SFP Ports |
|---|---|---|---|
| Memory And Processor: | Quad Core ARM Cortex™ A72 @ 1.8 GHz | Throughput: | 130.9 Mpps |
| JL727A Specification Ports 48x 10/100/1000BASE-T Class 4 PoE Ports 4x 1/10G SFP Ports Memory And: | 176 Gbps | PoE Capability: | 370W |
| Stacking Capabilities: | 8 Members | Power Consumption: | 76W At 230 VAC |
| Product Dimensions: | 1.73 X 17.4 X 12.9 In | Condition: | Brand New |
| Warranty: | 1 Year |

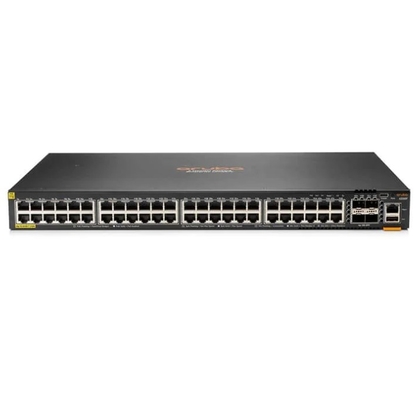

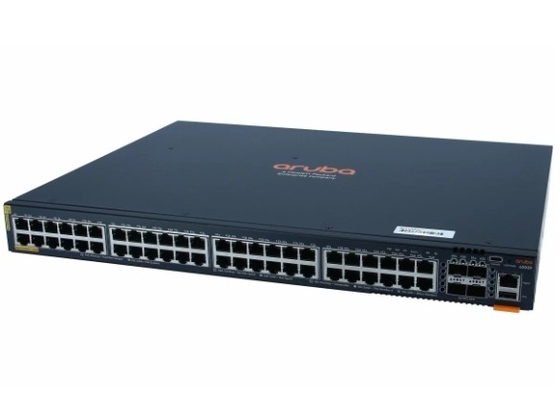

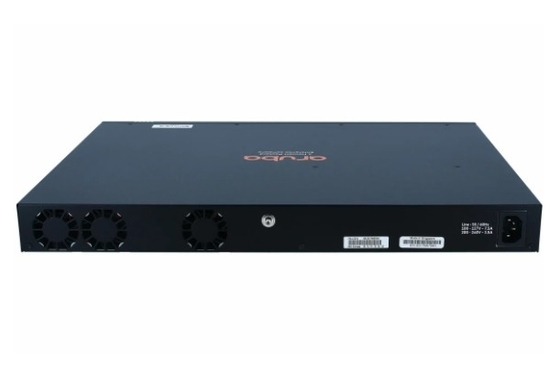

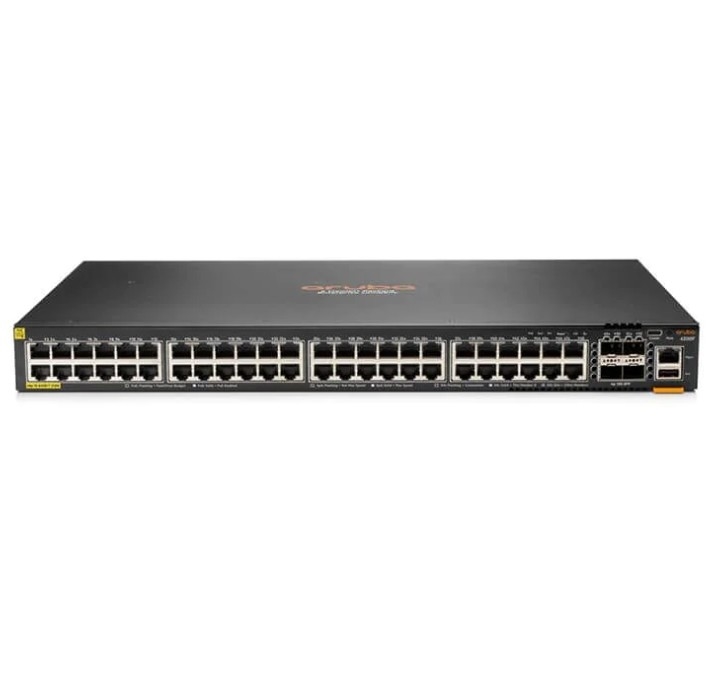

The Aruba CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks.
Table 1 shows the Quick Specs.
|
Product Code |
|
|
Ports |
48x 10/100/1000BASE-T Class 4 PoE ports 4x 1/10G SFP ports |
|
Memory and processor |
Quad Core ARM Cortex A72 @ 1.8 GHz |
|
Throughput |
Up to 130.9 Mpps |
|
Routing/switching capacity |
176 Gbps |
Table 2 shows the comparison of JL727A.
|
Module |
||
|
Ports |
24x 10/100/1000BASE-T ports 4x 1/10G SFP ports |
48x 10/100/1000BASE-T Class 4 PoE ports 4x 1/10G SFP ports |
|
Memory and processor |
Quad Core ARM Cortex A72 @ 1.8 GHz |
Quad Core ARM Cortex A72 @ 1.8 GHz |
|
Throughput |
Up to 95.2 Mpps |
Up to 130.9 Mpps |
JL727A specification |
|
|
Ports |
48x 10/100/1000BASE-T Class 4 PoE ports 4x 1/10G SFP ports |
|
Memory and processor |
Quad Core ARM Cortex™ A72 @ 1.8 GHz |
|
Latency |
1 Gbps: 2.28 ?Sec 10 Gbps: 1.46 ?Sec |
|
Throughput |
Up to 130.9 Mpps |
|
Routing/switching capacity |
176 Gbps |
|
PoE capability |
370W |
|
Stacking capabilities |
8 members |
|
Input voltage |
100V-120V/200V-240V |
|
Power Consumption |
76W at 230 VAC |
|
Product Dimensions (imperial) |
1.73 x 17.4 x 12.9 in |
