Product Details:
|
| Product Description: | C9200L 48T 4G A | Uplink Configuration: | 4x 1G Fixed Uplinks |
|---|---|---|---|
| Default Primary AC Power Supply: | PWR-C5-125WAC | Fans: | Fixed Redundant |
| Software: | Network Advantage | Stacking Bandwidth: | 80 Gbps |
| DRAM: | 2 GB | Flash: | 4 GB |
| Payment: | TT/paypal | Shipping: | DHL&FeDex |
| Highlight: | 48T Cisco Switch,48-port Cisco Switch,4x1G Cisco Switch |
||

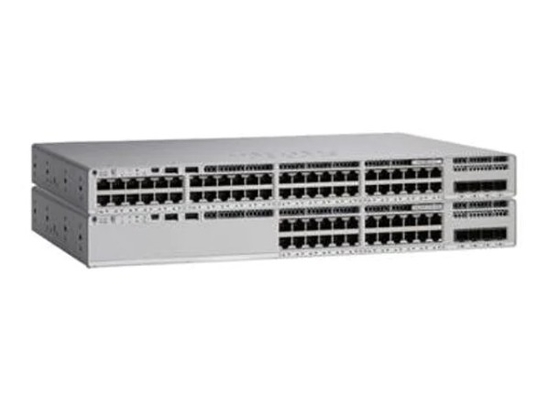

C9200L-48T-4G-A is the Catalyst 9200L 48-port Data 4x1G uplink Switch, with Network Advantage software. Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise C it is secure, always on, and IT simplified.
Table 1 shows the quick spec.
| Model | C9200L-48T-4G-A |
| Downlinks total 10/100/1000 or PoE+ copper ports | 48 ports data |
| Uplink configuration | 4x 1G fixed uplinks |
| Default primary AC power supply | PWR-C5-125WAC |
| Fans | Fixed redundant |
| Software | Network Advantage |
| Stacking bandwidth | 80 Gbps |
| DRAM | 2 GB |
| Flash | 4 GB |
| Switching capacity | 104 Gbps |
| Forwarding rate | 154.76 Mpps |
| Chassis Dimensions |
1.73 x 17.5 x 11.3 in 4.4 x 44.5 x 28.8 cm |
| Weight | 4.35 Kg |
Catalyst 9200 series provides these highlights:
Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
Flexible downlink options with data or PoE+
Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
Advanced network monitoring using Full Flexible NetFlow
Cisco Software-Defined Access (SD-Access):
Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE)
Network assurance and improved resolution time through Cisco DNA Center
Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network
Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming telemetry
ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries
Table 2 shows the recommended supported products.
| StackWise-80 and StackWise-160 Kit and cables | |
| Product number | Product description |
| C9200-STACK-KIT= | C9200 Stack Kit Spare |
| C9200L-STACK-KIT= | C9200L Stack Kit Spare |
| STACK-T4-50CM | 50CM Type 3 Stacking Cable |
| STACK-T4-1M | 1M Type 3 Stacking Cable |
| STACK-T4-3M | 3M Type 3 Stacking Cable |
| Power supplies | |
| Product Number | Product Description |
| PWR-C5-125WAC/2= | 125WAC power supply spare |
Table 3 shows the comparison.
| Product number | Product description |
| C9200L-48T-4G-A | Catalyst 9200L 48-port Data 4x1G uplink Switch, Network Advantage |
| C9200L-48T-4G-E | Catalyst 9200L 48-port Data 4x1G uplink Switch, Network Essentials |
| C9200L-48P-4G-A | Catalyst 9200L48-port PoE+ 4x1G uplink Switch, Network Advantage |
| C9200L-48P-4G-E | Catalyst 9200L48-port PoE+ 4x1G uplink Switch, Network Essentials |
