Product Details:
|
| Name: | PWR C1 350WAC | Model: | PWR C1 350WAC |
|---|---|---|---|
| Power Supply Rated Maximum: | Cisco1921 1905 1906c | Power Type: | 350W |
| Warrranty: | 1 Year | Shipping: | DHL&FeDex |
| Input Current: | 4-2A | Power Cord Rating: | 10A |
| Payment: | TT/paypal | ||
| Highlight: | Cisco switches Power Supply,350W AC Config 1 Power Supply,350W AC Power Supply |
||
PWR-C1-350WAC is the 350W AC Config 1 Power Supply for Cisco switches.

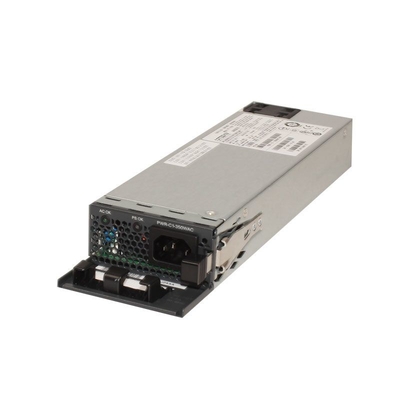

Figure 1 shows the appearance of PWR-C1-350WAC.
Table 1 shows the Quick Specs.
| Product Code | PWR-C1-350WAC |
| Power supply rated maximum | 350W |
| Total output BTU (Note: 1000 BTU/hr = 293W) | 1207BTU/hr, 350W |
| Input-voltage range and frequency |
100-240VAC, 50-60 Hz |
| Input current | 4-2A |
| Output ratings | -56V at 6.25A |
| Output holdup time | 16.7 ms minimum at 100VAC |
| Power-supply input receptacles | IEC 320-C16 (IEC60320-C16) |
| Power cord rating | 10A |
| Physical specifications | (H x W x D): 1.58 X 3.25 X 12.20 in |
Table 2 shows the recommended elements for the PWR-C1-350WAC.
| Category | Model | Description |
| Power Cable | CAB-TA-NA | North America AC Type A Power Cable |
| CAB-TA-JP | Japan AC Type A Power Cable | |
| CAB-C15-CBN | Cabinet Jumper Power Cord, 250 VAC 13A, C14-C15 Connectors |
Table 3 shows the comparison of PWR-C1-350WAC, PWR-C1-440WDC, PWR-C1-1100WAC and PWR-C1-715WAC=.
| Product Code | PWR-C1-350WAC | PWR-C1-440WDC | PWR-C1-715WAC= | PWR-C1-1100WAC |
| Power supply rated maximum | 350W | 440W | 715W | 1100W |
| Total output BTU (Note: 1000 BTU/hr = 293W) | 1207BTU/hr, 350W | 1517BTU/hr, 440W | 2465 BTU/hr, 715W | 3793 BTU/hr, 1100W |
| Input-voltage range and frequency |
100-240VAC, 50-60 Hz |
-36VDC to -72VDC |
100-240VAC, 50-60 Hz |
115-240VAC, 50-60 Hz |
| Input current | 4-2A |
|
10-5A | 12-6A |
| Output ratings | -56V at 6.25A | -56V at 7.86A | -56V at 12.8A | -56V at 19.64A |
| Output holdup time | 16.7 ms minimum at 100VAC | > 2ms at -48VDC | 16.7 ms minimum at 100VAC | 10 ms minimum at 102.5VAC |
| Power-supply input receptacles | IEC 320-C16 (IEC60320-C16) | Terminal strip |
IEC 320-C16 (IEC60320-C16) |
IEC 320-C16 (IEC60320-C16) |
| Power cord rating | 10A | 20A at 100VDC | 13A | 13A |
