Product Details:
|
| Model: | AirEngine 6760-X1 AirEngine 6760-X1 | Port: | 1 X 10 GE, 1 X GE Electrical, And 1 X 10 GE SFP+ |
|---|---|---|---|
| IoT: | Built-in IoT Slots AirEngine 6760-X1 | Basic Capability: | Up To 8.35 Gbit/s AirEngine 6760-X1 |
| RTU License Upgrade: | Up To 10.75 Gbit/sAirEngine 6760-X1 | Antenna Type: | Built-in Smart AntennasAirEngine 6760-X1 |
| Dimensions: | 61 Mm X 220 Mm X 220 Mm | Condition: | Brand New SealedAirEngine 6760-X1 |
| Warranty: | 1 Year AirEngine 6760-X1 | Payment: | T/T, Western Union, Paypal |
| Shipment: | DHL, Fedex, UPSAirEngine 6760-X1 |

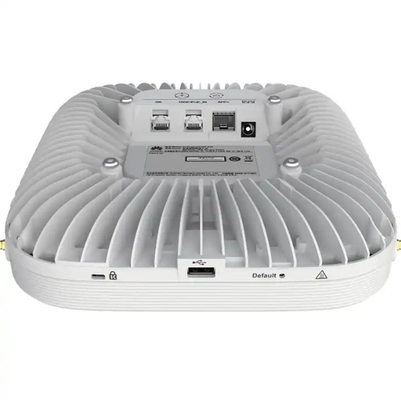

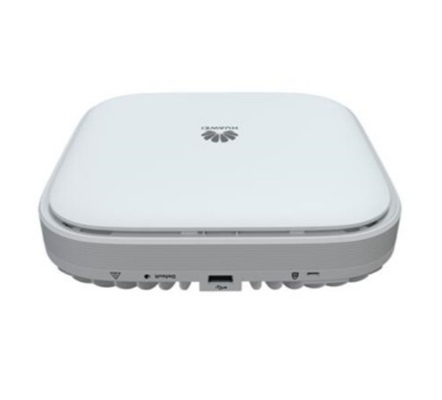

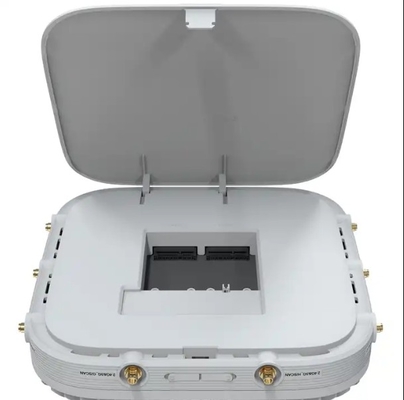

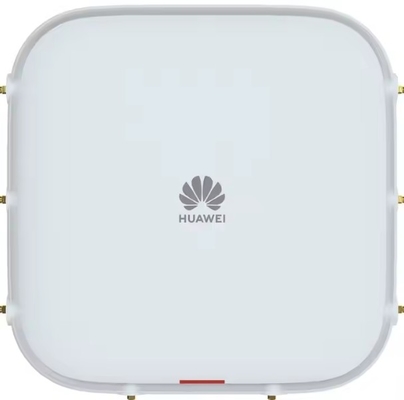

Huawei AirEngine 6760-X1 is an indoor Wi-Fi 6 (802.11ax) Access Points (APs), which support ten spatial streams as the default, with support for up to 12 spatial streams possible through a Right to Use (RTU) software license. In addition, this model supports Software-Defined Radio (SDR) and can flexibly switch between three modes — dual-radio, triple-radio, and dual-radio + one scanning radio — making them ideal for high-interference or high-density access scenarios.
| Model | Huawei AirEngine 6760-X1 | AirEngine 5760-51 |
| Maximum Number of Users | ≤ 1024 (dual-radio mode) ≤ 1152 (triple-radio mode) Note: The actual number of users varies according to the environment |
≤ 1024 (dual-radio mode) ≤ 1152 (triple-radio mode) Note: The actual number of users varies according to the environment. |
| Port | 1 x 10 GE, 1 x GE electrical, and 1 x 10 GE SFP+ | 1 x 5 GE and 1 x GE electrical |
| IoT | Built-in IoT slots | Built-in IoT slots |
| Antenna Type | Built-in Smart Antennas | Built-in Smart Antennas |
| Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2/ax | 802.11a/b/g/n/ac/ac Wave 2/ax |
| Maximum Rate | Basic capability: 8.35 Gbit/s RTU license upgrade: 10.75 Gbit/s |
Basic capability: up to 5.37 Gbit/s RTU license upgrade: up to 5.95 Gbit/s |
Huawei AirEngine 6760-X1 Specification |
|
| Dimensions (H x W x D) | 61 mm x 220 mm x 220 mm |
| Power Input | DC: 48 V ± 10% PoE power supply: in compliance with IEEE 802.3bt |
| Maximum Number of Users | ≤ 1024 (dual-radio mode) ≤ 1152 (triple-radio mode) Note: The actual number of users varies according to the environment |
| Port | 1 x 10 GE, 1 x GE electrical, and 1 x 10 GE SFP+ |
| IoT | Built-in IoT slots |
| Operating Temperature | –10°C to 50°C |
| Antenna Type | AirEngine 6760-X1: Built-in Smart Antennas |
| MIMO: Spatial Streams | Basic capability: 2.4 GHz: 4x4:4; 5 GHz: 6x6:6 Capability upgrade via RTU license: 2.4 GHz: 4x4:4; 5 GHz: 8x8:8 2.4 GHz: 4x4:4; 5 GHz-0: 4x4:4; 5 GHz-1: 4x4:4 |
| Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2/ax |
| Maximum Rate | Basic capability: 8.35 Gbit/s RTU license upgrade: 10.75 Gbit/s |
