Product Details:
|
| Model: | TNHD00ISUA02 | Dtail: | 8xFE/21xE1/120ohm(T1/100ohm)/2xSTM-1(L-1.1,LC)Integrated System Control Unit(L-1.1,LC),ESFP Opitcal Module |
|---|---|---|---|
| Part Number: | 03052112 | Discount Category: | Ring Alarm Base Station |
| Key Word: | Valve Index Base Station | Iterm: | Razer Base Station Chroma |
| MOQ: | Homemade Base Station Cb Antenna 1 Pc | Product Series: | Htc Vive Base Stations |
| Highlight: | Huawei OSN ESFP Opitcal Module,Pro Bts Telecoms ESFP Opitcal Module,Huawei Nomad Base Station |
||

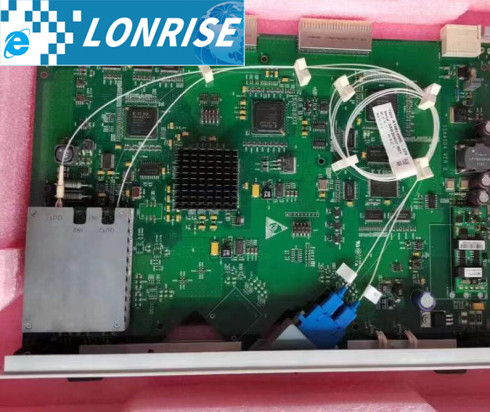

TNHD00ISUA02 Huawei OSN ESFP Opitcal Module nomad base station pro bts telecoms
8xFE/21xE1/120ohm(T1/100ohm)/2xSTM-1(L-1.1,LC)Integrated System Control Unit(L-1.1,LC),ESFP Opitcal Module
|
Other product you may like
The product performance and configuration of OSN500.
The OptiX OSN500 can form various network topologies such as ring networks and chain networks.
The OptiX OSN500 supports configuration of TM (Terminal Multiplexer) and ADM (Add/Drop Multiplexer) network element types and their hybrid configurations. Chain and ring network topologies can be formed through STM-1/STM-4 level optical interfaces.
The OptiX OSN500, as an access layer device, can be mixed with Huawei's Metro series and OSN series devices for networking. At the same time, it also supports mixed networking with third-party devices.
OptiX OSN500 provides device level and network level protection
The OptiX OSN500 not only supports 1+1 backup of internal power modules, but also provides network level protection for connected services, including 1+1 and 1:1 linear multiplexing segment protection
MSP (Multiple Section Protection) protection
SNCP(Sub-Network Connection Protection)
OptiX OSN500 Main Device Business Board
TNHD00PL3T01 3 * E3/T3 electrical interface board
TNHD00EGT101 1-way 1000M Ethernet transparent processing board (1000BASE-LX, 1310-LC)
TNHD00EGT102 1-way 1000M Ethernet transparent processing board (1000BASE-SX, 850-LC)
TNHD00EFS801 8-way Fast Ethernet processing board with switching function
TNHD000EOW01 Official Board
The OptiX OSN 500 STM-1/STM-4 multi-service CPE optical transmission system is the end device used for access layers today and in the future. The master controller generally integrates 8xFE/21xE1/75ohm/2xSTM-1 (S-1.1, LC)/2xSTM-4 (L-4.1, LC) system integration unit - ESP optical module, and there are two active slots on the device.
OptiX OSN 500 is a new generation optical transmission device designed by Huawei for the access layer, supporting TDM, Ethernet over SDH, Ethernet Switching, and MPLS transmission. It is mainly used in the access layer of transmission networks and provides STM-1/STM-4 optical interfaces. It is suitable for mobile access transmission and dedicated line access transmission, with energy-saving, maintenance free, and high
| part number | Description |
| W04805S00 | System power supply - GIE4805S-48V/10A power supply system, rectifier module 1+1 backup, maximum output current of a single rectifier module 10A, battery float management function, no temperature compensation |
| TNHB1CASE | Final assembly box |
| N63E Rack | N63E assembled cabinet (2200x600x300mm) (322) |
| TNHB00CASE01 | General assembly cabinet (220V) |
| SS44PDU | Metro 1000 DC Distribution Box |
| Telephone | Business Phone |
| TNHMMODELB01 | 21xE1/75ohm/2xSTM-1 (S-1.1) master control integrated photoelectric optical transmission module (- 48VDC) |
| TNHMMODELA01 | 8xFE/21xE1/75ohm/2xSTM-1 (S-1.1) master control integrated photoelectric optical transmission module (- 48VDC) |
| TNHMMODELD01 | 21xE1/75ohm/2xSTM-1 (S-1.1) master control integrated photoelectric optical transmission module (220VAC) |
| TNHMMODELE01 | 8xFE/21xE1/75ohm/2xSTM-4 (S-4.1) master control integrated photoelectric optical transmission module (- 48VDC) |
| TNHMMODELF01 | 8xFE/21xE1/75ohm/2xSTM-1 (S-1.1) master control integrated photoelectric optical transmission module (220VAC) |
| TNHD0SP3DA01 | 42xE1/120ohm (T1/100ohm) electrical interface board |
| TNHD00PL3T01 | 3 * E3/T3 electrical interface board |
| TNHD000EOW01 | Official Board |
| TNHD00EFS801 | 8-way fast Ethernet processing board with switching function |
| TNHD0SP3DB01 | 42xE1 electrical interface board (75ohm) |
| TNHD00ISUA01 | 8xFE/21xE1/120ohm (T1/100ohm)/2xSTM-1 (S-1.1, LC) system integration unit - EFFP optical module |
| TNHD00ISUA02 | 8xFE/21xE1/120ohm (T1/100ohm)/2xSTM-1 (L-1.1, LC) system integration unit - EFFP optical module |
| TNHD00ISUC01 | 8xFE/21xE1/75ohm/2xSTM-1 (S-1.1, LC) system integration unit-ESFP optical module |
| TNHD00ISUC02 | 8xFE/21xE1/75ohm/2xSTM-1 (L-1.1, LC) system integration unit - ESFP optical module |
| TNHD00ISUA03 | 8xFE/21xE1/120ohm (T1/100ohm)/2xSTM-4 (S-4.1, LC) system integration unit - EFFP optical module |
| TNHD00ISUA04 | 8xFE/21xE1/120ohm (T1/100ohm)/2xSTM-4 (L-4.1, LC) system integration unit - EFFP optical module |
| TNHD00ISUB01 | 21xE1/120ohm (T1/100ohm)/2xSTM-1 (S-1.1, LC) system integration unit-ESFP optical module |
| TNHD00ISUB02 | 21xE1/120ohm (T1/100ohm)/2xSTM-1 (L-1.1, LC) system integration unit - ESFP optical module |
| TNHD00ISUD01 | 21xE1/75ohm/2xSTM-1 (S-1.1, LC) system integration unit - EFFP optical module |
| TNHD00ISUD02 | 21xE1/75ohm/2xSTM-1 (L-1.1, LC) system integration unit - EFFP optical module |
| TNHD00ISUB03 | 21xE1/120ohm (T1/100ohm)/2xSTM-4 (S-4.1, LC) system integration unit - ESFP optical module |
| TNHD00ISUB04 | 21xE1/120ohm (T1/100ohm)/2xSTM-4 (L-4.1, LC) system integration unit - ESFP optical module |
| TNHD00SL1D01 | 2xSTM-1 (S-1.1, LC) optical interface board - ESFP optical module |
| TNHD00SL1D02 | 2xSTM-1 (L-1.1, LC) optical interface board - ESFP optical module |
| TNHD00ISUC03 | 8xFE/21xE1/75ohm/2xSTM-4 (S-4.1, LC) system integration unit - ESFP optical module |
| TNHD00ISUC04 | 8xFE/21xE1/75ohm/2xSTM-4 (L-4.1, LC) system integration unit - ESFP optical module |
| TNHD00ISUD03 | 21xE1/75ohm/2xSTM-4 (S-4.1, LC) system integration unit - EFFP optical module |
| TNHD00ISUD04 | 21xE1/75ohm/2xSTM-4 (L-4.1, LC) system integration unit - EFFP optical module |
| TNHD00SL1D03 | 2xSTM-1 (L-1.2, LC) optical interface board - ESFP optical module |
| TNHD00EGT101 | 1-way 1000M Ethernet transparent processing board (1000BASE-LX, 1310-LC) |
| TNHD00EGT102 | 1-way 1000M Ethernet transparent processing board (1000BASE-SX, 850-LC) |
