Product Details:
|
| Model: | AIR-AP1832I-H-K9 | Name: | Cisco AIR-AP1832I-H-K9 New 1830 Series Indoor Wireless Network Access Point |
|---|---|---|---|
| Detail: | 802.11a/g/n/ac Wave 2, Controller Based, 3 X 3 MU-MIMO, 1.733Gbps Thoughput, Dual-band | Total 10/100/1000 Or Multigigabit Copper Ports: | 24 |
| Weight: | 3.12 Lb (1.41 Kg) | Default AC Power Supply: | 350W AC |
| Dimensions (H X W X D): | 8.3 X 8.3 X 2 In. (210.8 X 210.8 X 50.8 Mm) | Moq: | 1 |
| Condition: | 100% Original Brand | ||
| Highlight: | 1830 Wireless Network Access Point,AP1832I Wireless Network Access Point,Indoor Cisco Aironet Wireless Access Point |
||

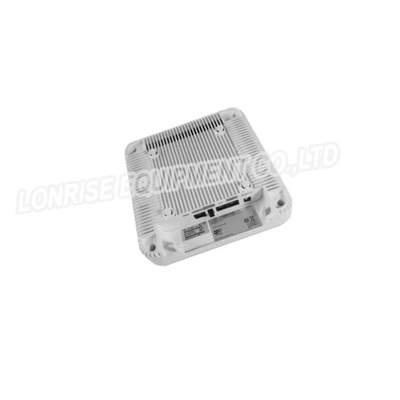

AIR-AP1832I-H-K9 is one of the Cisco Aironet 1830 Series Access Points. Cisco 1830 AP series is ideal for small and medium-sized networks. This series supports the latest Wi-Fi standard, the 802.11ac Wave 2 standard. The 1830 Series extends support to a new generation of Wi-Fi clients, such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac Wave 1 or Wave 2 support. The model AIR-AP1832I-H-K9 provides H Regulatory Domain and internal antennas.
| Part Number | AIR-AP1832I-H-K9 |
| Description | 802.11ac Wave 2 AP, 3x3:2, Internal Antenna, H Regulatory Domain |
| Features |
- 3x3 MIMO with two spatial streams, single-user or multiuser MIMO - MRC - 802.11ac beamforming (transmit beamforming) - 20-, 40-, and 80-MHz channels - PHY data rates up to 867 Mbps (80 MHz in 5 GHz) - Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) - 802.11 DFS - CSD support |
| Regulatory Domain |
H (H regulatory domain): - 2.412 to 2.472 GHz; 13 channels - 5.150 to 5.350 GHz; 8 channels - 5.745 to 5.825 GHz; 5 channels |
| Integrated antenna |
- 2.4 GHz, gain 3 dBi, internal omni, horizontal beamwidth 360° - 5 GHz, gain 5 dBi, internal omni, horizontal beamwidth 360° |
| Interfaces |
- 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE) - Management console port (RJ-45) - USB 2.0 (enabled via future software) |
| Dimensions (W x L x H) | 8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm) |
| Weight | 3.12 lb (1.41 kg) |
