Product Details:
|
| Model: | JL259A | Name: | HPE JL259A - Aruba 2930F Switch |
|---|---|---|---|
| Key Words: | Switch In Computer Network | Detail: | Aruba 2930F 24G 4SFP Switch |
| Iterm: | 24 Port Network Switch | Additional: | Ports And Slots 1 Dual-personality (RJ-45 Or USB Micro-B) Serial Console Port |
| Throughput: | Up To 41.7 Mp/s | Switching Capacity: | 56 Gb/s |
| Highlight: | 24G 4SFP Poe Ethernet Switch,176 Gbit Cisco Poe Switch,Cisco Poe Ethernet Switch |
||

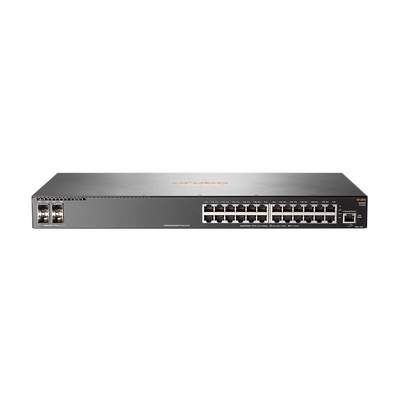

HPE JL259A - Aruba 2930F Switch 24G 4SFP 176 gbit poe ethernet switch
Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users with an integrated wired and wireless approach. These basic Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave and are ideal for enterprise edge, SMB and branch offices. A powerful Aruba ProVision ASIC delivers performance and value supporting the latest SDN applications with future proof programmability. The 2930F supports 10GbE uplinks, PoE+, robust QoS, RIP routing, Access OSPF, ACLs, Tunneled Node and IPv6. This JL259A has 24 x 10/100/1000 access ports and 4 x Gigabit SFP transceiver slots for uplink connectivity.
| Product Code | JL259A |
| Type | Aruba 2930F 24G 4SFP Switch |
| I/O ports and slots |
· 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) Duplex: 10BASE-T/100BASE-TX: half or full 1000BASE-T: full only · 4 SFP |
| Additional ports and slots | 1 dual-personality (RJ-45 or USB micro-B) serial console port |
| Throughput | up to 41.7 Mp/s |
| Switching capacity | 56 Gb/s |
| Dimensions |
4.39 x 44.25 x 20.02 cm ( 1.73 x 17.42 x 7.88 in) 1U height |
| Product Code | JL258A | JL259A | JL260A | JL261A | JL262A |
| Type | Aruba 2930F 8G PoE+ 2SFP+ Switch | Aruba 2930F 24G 4SFP Switch | Aruba 2930F 48G 4SFP Switch | Aruba 2930F 24G PoE+ 4SFP Switch | Aruba 2930F 48G PoE+ 4SFP Switch |
| I/O ports and slots |
· 8 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) Duplex: 10BASE-T/100BASETX: half or full 1000BASE-T: full only |
· 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) Duplex: 10BASE-T/100BASE-TX: half or full 1000BASE-T: full only · 4 SFP |
· 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) Duplex: 10BASE-T/100BASE-TX: half or full 1000BASE-T: full only · 4 SFP |
· 24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) Duplex: 10BASE-T/100BASETX: half or full 1000BASE-T: full only |
· 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) Duplex: 10BASE-T/100BASETX: half or full 1000BASE-T: full only |
| Throughput | up to 41.7 Mp/s | up to 41.7 Mp/s | up to 77.4 Mp/s | up to 41.7 Mp/s | up to 77.4 Mp/s |
| Switching capacity | 56 Gb/s | 56 Gb/s | 104 Gb/s | 56 Gb/s | 104 Gb/s |
