Product Details:
|
| Model: | ASA5506-K9 | Name: | ASA5506 - K9 Cisco ASA 5500 - X Next Generation In Stock For Ready To Seal |
|---|---|---|---|
| Detial: | Cisco ASA 5500-X Next Generation, ASA 5506-X, 8*GE Ports, 1GE Mgmt, AC, 3DES/AES, AVC, FirePower, FireSIGHT | Interfaces: | 8 X 1 Gigabit Ethernet Interface,1 Management Port |
| Maximum 3DES/AES VPN Throughput: | 100 Mbps | Memory: | 4GB |
| Flash: | 8GB | Power (AC Or DC): | AC Only |
| Highlight: | Firepower Ethernet Managed Switch,Cisco ASA 5500 POE Ethernet Switch,K9 Fiber Optic Ethernet Switch |
||

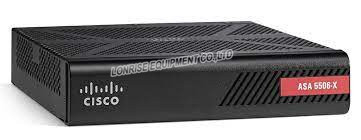

ASA5506 - K9 Cisco ASA 5500 - X Next Generation in stock for ready to seal
Cisco ASA5506-K9, designed for small or mid-size enterprise or branch offices, is one of the Cisco ASA 5500-X Next-generation series firewalls with Firepower services.
ASA5506-K9 Specifications |
|
| Type | Cisco ASA 5506-X w/ FirePOWER Services |
|
Throughput: Application Control (AVC) |
250 Mbps |
|
Throughput: Application Control (AVC) and IPS |
125 Mbps |
| Maximum concurrent sessions |
20,000; 50000 |
| Maximum New Connections per second | 5,000 |
| Supported applications | More than 3,000 |
| URL categories | 80+ |
| Number of URLs categorized | More than 280 million |
| Centralized configuration, logging, monitoring, and reporting | Multi-device Cisco Security Manager (CSM) and Cisco Firepower Management Center |
| On-Device Management | ASDM (version 7.3 or higher required) |
| Feature | Cisco ASA 5506-X w/ FirePOWER Services |
| Stateful inspection throughput (maximum1) | 750 Mbps |
| Stateful inspection throughput (multiprotocol2) | 300 Mbps |
| Triple Data Encryption Standard/ Advanced Encryption Standard (3DES/AES) VPN throughput3 |
100 Mbps |
| Users/nodes | Unlimited |
| IPsec site-to-site VPN peers | 10; 50 |
| Cisco AnyConnect Plus/Apex VPN maximum simultaneous connections5 | 50 |
| Virtual interfaces (VLANs) | 5; 30 |
| Security contexts5(included; maximum) | N/A |
| High availability | Requires Security Plus License; Active/ Standby |
|
Integrated Wireless Access Point (See Cisco AP 702 datasheet for WiFi technical details) |
N/A |
| Expansion slot | N/A |
| User-accessible Flash slot | No |
| USB 2.0 ports | USB port type ‘A’, High Speed 2.0 |
| Integrated I/O | 8 x 1 Gigabit Ethernet (GE) |
| Expansion I/O | N/A |
| Dedicated management port | Yes (To be shared with FirePOWER Services), 10/100/1000 |
| Serial ports | 1 RJ-45 and Mini USB console |
| Solid-state drive | 50 GB mSata |
| Memory | 4 GB |
| System flash | 8 GB |
| System bus | Multibus architecture |
| Temperature | 32 to 104°F (0 to 40 °C) |
| Relative humidity | 90 percent noncondensing |
| Altitude | Designed and tested for 0 to 10,000 ft (3048 m) |
| Acoustic noise |
Fanless 0 dBA |
| Temperature | -13 to 158ºF (-25 to 70ºC) |
| Relative humidity | 10 to 90 percent noncondensing |
| Altitude | Designed and tested for 0 to 15,000 ft (4572 m) |
| AC range line voltage | External, 90 to 240 volts alternating current (VAC) |
| AC normal line voltage | 90 to 240 VAC |
| AC current | N/A |
| AC frequency | 50/60 Hz |
| Dual-power supplies | None |
| DC domestic line voltage | N/A |
| DC international line voltage | N/A |
| DC current | N/A |
| Steady state | 12V @2.5A |
| Maximum peak |
12V @ 5A |
| Maximum heat dissipation |
103 British thermal units (Btu)/hr |
| Form factor | Desktop, rack mountable |
|
Dimensions (H x W x D) |
1.72 x 7.871 x 9.23 in. |
| (4.369 x 19.992 x 23.444 cm) | |
| Weight (with AC power supply) | 4 lb (1.82 kg) |
the Quick Specs.
| Product Code | ASA5506-K9 |
| Interfaces | 8 x 1 Gigabit Ethernet interface,1 management port |
| Stateful inspection throughput (multiprotocol) | 300 Mbps |
| Maximum 3DES/AES VPN throughput | 100 Mbps |
| IPsec site-to-site VPN peers | 10; 50 with Security Plus license |
| Virtual interfaces (VLANs) | 5; 30 with Security Plus license |
| Memory | 4GB |
| Flash | 8GB |
| Power (AC or DC) | AC only |
| Height (rack units) | Desk Top |
| Dimensions (D x H x W) | 9.23 in x 1.72 in x 7.871 in |
| Package Weight | 3.78 Kg |
the comparison of ASA5506-K9, ASA5508-K9 and ASA5515-K9.
| Models | ASA5506-K9 | ASA5508-K9 | ASA5515-K9 |
| Interfaces | 8 x 1 GE | 8 x 1 GE | 6 GE Copper |
|
Stateful Inspection Throughput (multiprotocol) |
300 Mbps | 500 Mbps | 1.2 Gbps |
| Maximum 3DES/AES VPN Throughput | 100 Mbps | 175 Mbps | 250 Mbps |
| Memory | 4GB | 8GB | 8GB |
| Flash | 8GB | 8GB | 8GB |
| Height (rack units) | Desk Top | 1 RU | 1 RU |
