Product Details:
|
| Brand: | Cisco | Model: | AR2202-48FE |
|---|---|---|---|
| Memory: | 512 MB | Flash: | 512 MB |
| Dimensions (W X D X H): | 44.2 Cm X 31.49 Cm X 4.36 Cm | Weight: | 4.5 Kg |
| Highlight: | cisco network router,cisco modular router |
||

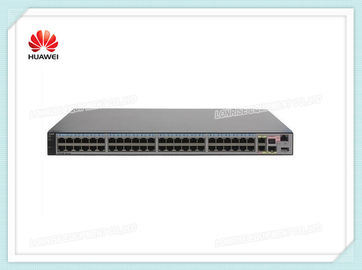

Huawei AR G3 AR2200 series router AR2202-48FE designs for mid-size enterprise or branch office. It equips 2 Gigabit Ethernet (RJ-45 or SFP) WAN ports, 1 E1 ports, 1 SA ports, 1 USB, 48Fast Ethernet LAN ports. The AR2200 use the embedded hardware encryption technique and support a voice-optimized Digital Signal Processor (DSP). They provide firewall security, call processing, voice mail, and other application programs. In addition, Huawei AR2202 build-in firewall and IPS provide comprehensive security solutions include user access control, packet detection, and active attack defense.
|
AR2202-48FE Specifications |
|
|
Type |
AR2202-48FE, 2GE WAN(1GE Combo), 1 E1, 1 SA, 1 USB, 48FE LAN, 60W AC Power |
|
Software Version |
V200R003C00 and later |
|
Dimensions (W x D x H) |
442.0 mm x 314.9 mm x 43.6 mm |
|
Memory |
512 MB |
|
Flash |
512 MB |
|
Hard disk |
None |
|
Service and Router Unit (SRU) |
Not supported |
|
Network data encryption (SM1/2/3/4) card |
Not supported |
|
Management interface |
Supported |
|
Console interface (RJ45) |
Supported |
|
Console interface (Mini USB) |
Supported |
|
USB 2.0 interface (host) |
Supported |
|
USB 2.0 interface (OTG) |
None |
|
Micro SD card (default) |
Not supported |
|
Antenna interfaces |
None |
|
Service interfaces (standard configuration) |
WAN interfaces: 1 GE electrical interface, 1 GE combo interface, 1 SA interface, 1 E1 interface LAN interfaces: 48 10/100M auto-sensing Ethernet electrical interfaces |
|
Interface number |
LAN interfaces: FE0-FE47 |
|
Extended slots |
1 |
|
Power module type |
Built-in AC power module |
|
Rated voltage range |
100 V AC/240 V AC, 50 Hz/60 Hz |
|
Maximum voltage range |
90 V AC to 264 V AC, 47 Hz to 63 Hz |
|
RPS150 |
Supported |
|
PoE |
Not supported |
|
Maximum PoE power for PDs |
None |
|
PoE+ interfaces |
None |
|
Weight |
4.5 kg (9.92 lb) |
|
Mounting brackets |
Standard configuration |
|
Operating temperature |
0°C to 45°C (32°F to 113°F) |
|
Operating altitude |
0-4000 m (0-13123 ft.) |
|
Fan type |
Built-in fans |
|
Heat dissipation mode |
Forcible air cooling |
|
Installation mode |
Rack mounting |
