Product Details:
|
| Brand: | CISCO | Model: | CISCO3945/K9 |
|---|---|---|---|
| Form Factor: | Desktop - Modular - 3U | Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol: | IPSec, PPPoE, L2TPv3 | Encryption Algorithm: | SSL |
| Highlight: | cisco ethernet router,cisco modular router |
||

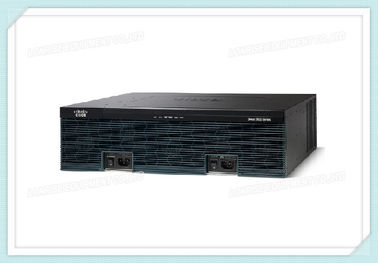

CISCO3945/K9 Cisco 3945 Router w/SPE150 3GE 4EHWIC 4DSP 4SM 256MBCF 1GBDRAM IPB
The Cisco 3945 router, modular Services Performance Engine (SPE) 150, which can be upgraded for even higher performance as next-generation WAN environments evolve.
CISCO3945/K9 Specification |
|
| General | |
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | CISCO3945/K9 |
| Product Type | Router |
| Form Factor | Desktop - modular - 3U |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Capacity | Cisco Unified Communications Manager Express sessions : 350 Cisco Unified SRST sessions : 1200 |
| Network / Transport Protocol | IPSec, PPPoE, L2TPv3 |
| Routing Protocol |
OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR) |
| Remote Management Protocol | SNMP, RMON |
| Encryption Algorithm | SSL |
| Features |
Firewall protection, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN) |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag |
| DRAM Memory | 1 GB (installed) / 2 GB (max) |
| Flash Memory | 256 MB (installed) / 8 GB (max) |
| LED Status Lights Indicators | Link activity, power |
| Connectivity Slots | |
|---|---|
| Router Interfaces | 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 Management : 1 x console - RJ-45 Management : 1 x console - mini-USB Type B Serial : 1 x auxiliary - RJ-45 Hi-Speed USB : 2 x 4 PIN USB Type A 2 x SFP (mini-GBIC) |
| Expansion Slots Total (Free) | 4 ( 4 ) x EHWIC 4 ( 4 ) x PVDM 2 ( 1 ) x CompactFlash Card 1 ( 1 ) x Expansion Slot 4 ( 4 ) x service module (SM) |
| Power Supply | |
| Power Device | Power supply - internal |
| Voltage Required | AC 120/230 V ( 47/63 Hz ) |
| Dimensions / Weight / Miscellaneous | |
| Width | 47.6 cm ( 18.74 in) |
| Depth | 43.8 cm ( 17.24 in) |
| Height | 13.3 cm (5.24 in) |
| Package Weight | 21.84 kg ( 48.15 lbs) |
| Weight | 17.7 kg ( 39.02 lbs) |
| Compliant Standards |
CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, AS/NZ 3548 Class A, CAN/CSA-E60065-00,ICES-003 Class A, CS-03, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60065, BSMI CNS 13438 |
| System Software | |
| IOS Software Included | Cisco IOS IP Base |
