Product Details:
|
| Brand: | HUAWEI | WAN Speed With Services* (IMIX): | 150 Mbit/s Or 100 Mbit/s |
|---|---|---|---|
| Model: | AR151G-C | Fixed WAN Ports: | 1 X FE |
| Fixed Ethernet Switching Ports: | 8 X FE/4 X FE (can Be Configured As WAN Interfaces) | Memory Size: | 512 MB |
| Highlight: | cisco ethernet router,cisco modular router |
||

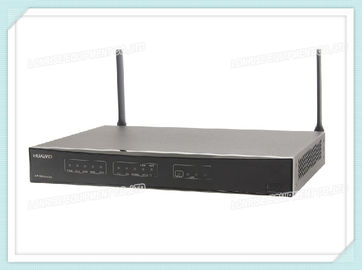

Original Huawei AR150 Series Router AR151G-C 1 Fast Ethernet WAN
Huawei AR G3 AR150 Series - AR151G-C fixed interface access enterprise router provides routing and switching functionality for small business or branch offices. Huawei AR G3 AR151G-C integrates 1 Fast Ethernet 10/100 WAN port, CDMA2000 EVDO, 4 Fast Ethernet LAN port, 1 USB and provides total 100Mbps system capacity. Dual-core processor separate data and control planes to ensure the high performance. Robust security feature include build-in, comprehensive authentication, defense mechanisms and a broad range of VPN options.
AR151G-C Specification |
|
| WAN speed with services* (IMIX) |
150 Mbit/s or 100 Mbit/s |
| Number of recommended users | 50 |
| Fixed WAN Ports | 1 x FE |
| Fixed Ethernet Switching Ports | 8 x FE/4 x FE (can be configured as WAN interfaces) |
| Fixed Voice Ports | - |
| Integrated 3G | - |
| USB 2.0 Ports | 1 |
| Console Ports | 1 |
| Memory Size | 512 MB |
| Flash Memory | 512 MB |
| PoE Power | - |
| Maximum Power | 36W/24W |
| Power Supply (AC) | 100V to 240V |
| Frequency | 50 Hz/60 Hz |
| Dimensions (H x W x D) | 44.5 mm x 300 mm x 220 mm (1.7 in. x 11.8 in. x 8.66 in.) |
| Operating Temperature | 0°C to 45°C |
| Relative Humidity | 5% to 95% (non- condensing) |
| Basic Features | DHCP server/client, PPPoE server/client, PPPoA server/client, PPPoEoA server/client, NAT, and sub-interface management |
| Voice | RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP, BEST, DISA, and SBC (only voice models support voice features) |
| WLAN (AP) | AP management, WLAN QoS, WLAN security, WLAN radio management, and WLAN user management (only WLAN models support WLAN AP features) |
| WLAN (AC) | AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n), WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/key management) |
| LAN | IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP, etc. |
| IPv4 Unicast Routing | Routing policy, static route, RIP, OSPF, IS-IS, and BGP |
| IPv6 Unicast Routing | Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+ |
| Multicast | IGMP v1/v2/v3, PIM SM, PIM DM, and MSDP |
| VPN | IPSec VPN, GRE VPN, DSVPN, L2TP VPN, and Smart VPN |
| QoS | DiffServ mode, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP + WRR WAN interface: PQ/CBWFQ), MQC (traffic classification, traffic behavior, and traffic policy), hierarchical QoS, and Smart Application Control (SAC) |
| Security | ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, IP source tracing, and PKI |
| Management and Maintenance | Upgrade management, device management, web-based GUI, GTL, SNMP v1/v2c/v3, RMON, NTP, CWMP, auto-config, site deployment using USB disk, NetConf, and CLI |
