Product Details:
|
| Part Number: | AP4050DN | Brand: | HUAWEI |
|---|---|---|---|
| Antenna Type: | Built-in Dual-band Omnidirectional Antennas | Interface Type: | RJ45 |
| Antenna Gain: | 2.4G: 5 DBi , 5G: 5 DBi | Maximum Number Of Users: | ≤512 |
| Highlight: | cisco poe wifi access point,cisco wifi access point |
||

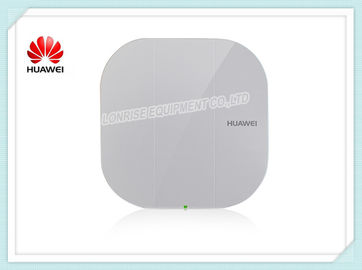

Huawei AP4050DN is a new generation access point that supports 802.11ac Wave 2, 2 x 2 MIMO, and two spatial streams.
It provides comprehensive service support capabilities and features high reliability, high security, simple network deployment, automatic AC discovery and configuration, and real-time management and maintenance, which meets network deployment requirements.
The AP complies with 802.11n and 802.11ac protocols and can provide gigabit access for wireless users.
The AP4050DN is applicable to commercial chains, medical, warehousing, manufacturing, and logistics environments.
1. Default button: Restores factory settings and restarts the device if you hold down the button for more than 3 seconds
2. USB port: Connects to a USB flash drive to extend the storage space of the AP, and provides a maximum of 2.5W power
3. Console port: Connects to the maintenance terminal for AP configuration and management
4. GE1/PoE_OUT: 10M/100M/1,000M port used to connect to the wired Ethernet and support PoE output
5. GE0/PoE_IN: 10M/100M/1,000M port used to connect to the wired Ethernet and support PoE input
6. DC 12V: Connects a 12V power adapter to the AP
7. Lock port: Protects the AP against theft
8. IoT slot: Allows IoT cards to be inserted to provide extended functions such as RFID location
9. Radio port: Connects to an IoT card and an antenna
LED Indicators
Note: Indicator colors may vary slightly at different temperature
| Item | Description | |
|---|---|---|
| Technical Specifications |
Dimensions (H x W x D) | 35 mm x 170 mm x 170 mm |
| Weight | 0.41 kg | |
| Interface Type | 1 x 10/100/1,000M self-adaptive Ethernet interface (RJ45) Console interface (RJ45 x 1) |
|
| LED Indicator | Indicates the power-on, startup, running, alarm, and fault status of the system. | |
| Power Specifications |
Power Input | DC: 12V ± 10% PoE power supply: in compliance with IEEE 802.3af/at |
| Maximum Power Consumption | 12.1W The actual maximum power consumption depends on local laws and regulations. |
|
| Environmental Specifications | Operating Temperature | -10°C to +50°C |
| Storage Temperature | –40°C to +70°C | |
| Operating Humidity | 5% to 95% (non-condensing) | |
| Altitude | –60m to +5,000m | |
| Dustproof and Waterproof Grade | IP41 | |
| Atmospheric Pressure | 53 kPa to 106 kPa | |
| Radio Specifications |
Antenna Type | Built-in dual-band omnidirectional antennas |
| Antenna Gain | 2.4G: 5 dBi 5G: 5 dBi |
|
| Maximum Number of SSIDs for Each Radio | 16 | |
| Maximum number of Users | ≤512 | |
| Radio Specifications |
Maximum Transmit Power | 2.4G: 23 dBm (combined power) 5G: 23 dBm (combined power) The actual transmit power depends on local laws and regulations. |
| Power Increment | 1 dBm | |
| Receiver Sensitivity | 2.4 GHz 802.11b: –97 dBm @ 1 Mbit/s; –91 dBm@ 11 Mbit/s | |
| 2.4 GHz 802.11g: -93 dBm @ 6 Mbit/s; -78 dBm @ 54 Mbit/s | ||
| 2.4 GHz 802.11n (HT20): -93 dBm @ MCS0; -72 dBm @ MCS15 | ||
| 2.4 GHz 802.11n(HT40): -90 dBm @ MCS0; -71 dBm @ MCS15 | ||
| 5 GHz 802.11a: -93 dBm @ 6 Mbit/s; -77 dBm @ 54 Mbit/s | ||
| 5 GHz 802.11n (HT20): -92 dBm @ MCS0; -72 dBm @ MCS15 | ||
| 5 GHz 802.11n (HT40): -89 dBm @ MCS0; -70 dBm @ MCS15 | ||
| 5 GHz 802.11ac (VHT20): -92 dBm @ MCS0NSS1; -71 dBm @ MCS8NSS2 | ||
| 5 GHz 802.11ac (VHT40): -90 dBm @ MCS0NSS1; -63 dBm @ MCS9NSS2 | ||
| 5 GHz 802.11ac (VHT80): -86 dBm @ MCS0NSS1; -60 dBm @ MCS9NSS2 | ||
2.4G (PHI=0)
2.4G (PHI=90)
5G (PHI=0)
5G (PHI=90)
