Product Details:
|
| Brand: | HUAWEI | Model: | AR32-400-AC |
|---|---|---|---|
| Firewall Performance (large Packets): | 5.5 Gbit/s (SRU40), 9.5 Gbit/s (SRU80), 10 Gbit/s (SRU100E), 15 Gbit/s (SRU200), 20 Gbit/s (SRU400) | XSIC Slots (default/max**): | 4/6 |
| SIC Slots: | 4 | WSIC Slots: | 2 |
| Highlight: | cisco ethernet router,cisco network router |
||

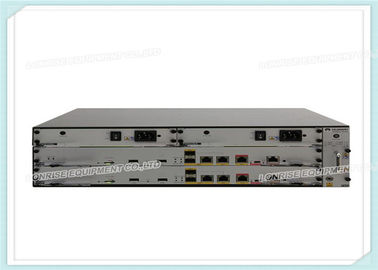

Huawei AR G3 AR3200 Series Integrated Enterprise Router AR32-400-AC with SRU400 AC Power
Huawei AR G3 AR3200 Series Integrated Enterprise Router AR32-400-AC is the next generation enterprise-class routers based on Huawei proprietary Versatile Routing Platform (VRP) platform. Huawei AR3200 series router utilizes multi-Core CPU and non-blocking switching structure to provide industry-leading performance and extensibility to support requirements of network development.
AR32-400-AC Specification | |
| WAN Speed with Services *** | 1 Gbit/s (SRU40), 2 Gbit/s (SRU80), 1 Gbit/s (SRU100E), 4.5 Gbit/s (SRU200), 5.5 Gbit/s (SRU400) |
| Firewall Performance (large packets) | 5.5 Gbit/s (SRU40), 9.5 Gbit/s (SRU80), 10 Gbit/s (SRU100E), 15 Gbit/s (SRU200), 20 Gbit/s (SRU400) |
| Device Switching Capacity | 160 Gbit/s |
| Slot Switching Bandwidth | SIC slots: 2 Gbit/s WSIC slots: 5 Gbit/s XSIC & EXSIC slots: 20 Gbit/s |
| Number of recommended users | 2,000 |
| Fixed WAN Ports | SRU40: 3 x GE (2 x Combo) |
| SIC Slots | 4 |
| WSIC Slots | 2 |
| XSIC Slots (default/max**) | 4/6 |
| EXSIC Slots (shared with XSIC) | 1 |
| DSP Slots | 0/3 |
| USB 2.0 Ports | 1/2 |
| Mini-USB Ports | 1 |
| Console Ports | 1 |
| Memory | 2 GB/4 GB |
| Flash (default/max**) | 2 GB/8 GB |
| Maximum Power | 350W (single power module)/700W (dual power module) |
| AC Power | 100V to 240V |
| Frequency | 50 Hz/60 Hz |
| DC Power | -48V to -60V |
| Dimensions (H x W x D) | 130.5 mm x 442 mm x 470 mm |
| Weight | 11 kg (without power module and interface card) |
| Ambient Temperature | 0oC to 45°C |
| Ambient Humidity | 5% to 95% (non-condensing) |
| Basic Features | DHCP server/client, PPPoE server/client, PPPoA client, PPPoEoA client, NAT, and sub-interface management |
| Voice | RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP/conference call, BEST, DISA, and SBC |
| 3G | 3G Interface card (WCDMA) |
| LTE | LTE Interface card (FDD LTE: Uplink: 50 Mbit/s; Downlink: 100 Mbit/s) |
| WLAN (AC) | AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management 802.11a/b/g/n, WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/Key management) |
| LAN | IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, and MSTP |
| IPv4 Unicast Routing | Routing policy, static route, RIP, OSPF, IS-IS, and BGP |
| IPv6 Unicast Routing | Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+ |
| Multicast | IGMPv1/v2/v3, IGMP Snooping v1/v2/v3, PIM SM, PIM DM, and MSDP |
| MPLS | LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP, FRR, TE FRR |
| VPN | IPSec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, Smart VPN |
| QoS | DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP+ WRRWAN interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior, traffic policy), hierarchical QoS, FR QoS, Smart Application Control (SAC), Hardware QoS |
| Security | ACL, firewall, 802.1x authentication, MAC address authentication, Web authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, IP source guard, DHCP snooping, CPCAR, blacklist, and IP source tracing |
| Management and Maintenance | Upgrade management, device management, web-based GUI, GTL, SNMPv1/v2c/v3, NTP, CWMP, auto-config, deployment using USB disk, NetConf, and CLI |
FAQ
1. Where do your products come from?
All of our products are from Cisco/Huawei distribution , Cisco/Huawei partner directly. We are Cisco partner at local, with cisco verified certification.
2. If all equioments I can buy service from local cisco ?
For all equipments you can buy service from local, because our goods are smart net free, all with clean serial number.
3. How to ship the goods?
Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be dispatched by express delivery door to door.
4. What’s your payment term?
We always accept 10% advance payment. For long term cooperation, we can consider to apply credit accordingly.
