Product Details:
|
| Brand: | CISCO | Model: | AR1220EV |
|---|---|---|---|
| Memory: | 1 GB | Flash: | 512 MB |
| Extended Slots: | 2 SIC Slots | Power Module Type: | Built-in AC Power Module |
| Highlight: | cisco ethernet router,cisco network router |
||

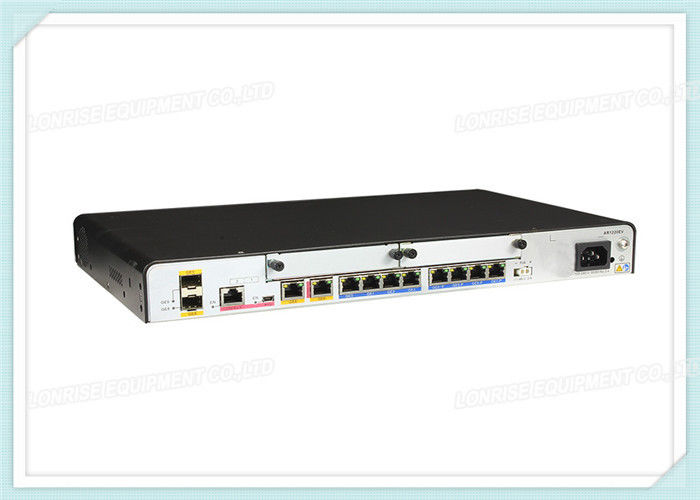

Huawei Next Generation AR1200 Series Router AR1220EV PoE Power Adapter
Huawei AR G3 AR1220 Series router voice bundle AR1220EV provides comprehensive solution for small enterprise or branch offices for voice, wireless controller as well as security.
AR1220EV Specification |
|
| WAN speed with services*** | 400 Mbit/s |
| Firewall Performance (large packet) | 1,800 Mbit/s |
| Device Switching Capacity | 8 Gbit/s |
| Slot Switching Bandwidth | SIC & WSIC slots: 2 Gbit/s |
| Number of Recommended Users | 100 |
| Fixed WAN Ports | 2 x GE Combo |
| Fixed LAN Ports | 8 x GE (can be configured as WAN interfaces) |
| SIC Slots | 2 |
| WSIC Slots (default/max) | 0/1 |
| DSP Slots | 32 channels supported by default |
| Wi-Fi | - |
| USB 2.0 Ports | 2 |
| Mini-USB Ports | 1 |
| Serial Auxiliary/Console Port | 1 |
| Memory | 1 GB |
| Flash | 512 MB |
| Max. Power | 60W |
| PoE Power | External 100W |
| AC Power | 100V to 240V |
| Frequency | 50 Hz/60 Hz |
| DC power | - |
| Dimensions (H x W x D) | 44.5 mm x 390 mm x 220 mm |
| Weight | 2.9kg (without interface cards) |
| Ambient Temperature | 0°C to 45°C** |
| Relative Humidity | 5% to 95% (non-condensing) |
| Basic Features | DHCP server/client, PPPoE server/client, PPPoA server/client, PPPoEoA server/client, NAT, and Sub interface management |
| Voice | RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP/conference call, BEST, DISA, and SBC (only voice models support voice features) |
| WLAN (AP) | AP management, WLAN QoS (WMM), WLAN security (WEP/WPA/WPA2/key management), WLAN radio management (802.11b/g/n), and WLAN user management (only WLAN models support WLAN AP features) |
| WLAN (AC) | AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n, WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/Key management) |
| 3G | 3G Interface card (WCDMA) |
| LTE | LTE Interface card (FDD LTE: Uplink: 50 Mbit/s; Downlink: 100 Mbit/s) |
| LAN | IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, and MSTP |
| IPv4 Unicast Routing | Routing policy, static route, RIP, OSPF, IS-IS, and BGP |
| IPv6 Unicast Routing | Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+ |
| Multicast | IGMPv1/v2/v3, PIM SM, PIM DM, and MSDP |
| MPLS | LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, TE FRR |
| VPN | IPSec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, Smart VPN |
| QoS | DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP + WRR; WAN interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior, and traffic policy), Hierarchical QoS, WLAN QoS, FR QoS, and Smart Application Control (SAC) |
| Security | ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, and IP source tracing |
| Management and maintenance | Upgrade management, device management, web-based GUI, GTL, SNMPv1/v2c/v3, NTP, CWMP, Auto-Config, deployment using USB disk, and CLI |
FAQ
1. Where do your products come from?
All of our products are from Cisco/Huawei distribution , Cisco/Huawei partner directly. We are Cisco partner at local, with cisco verified certification.
2. If all equioments I can buy service from local cisco ?
For all equipments you can buy service from local, because our goods are smart net free, all with clean serial number.
3. How to ship the goods?
Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be dispatched by express delivery door to door.
4. What’s your payment term?
We always accept 10% advance payment. For long term cooperation, we can consider to apply credit accordingly.
