huawei AP6010SN GN Wireless Access Point Huawei General AP Indoor 2 x 2 Single Frequency

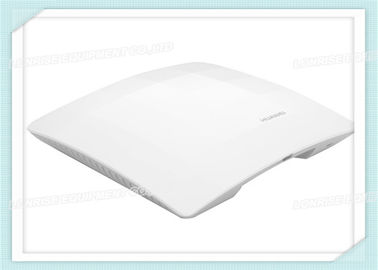

Large Image : huawei AP6010SN GN Wireless Access Point Huawei General AP Indoor 2 x 2 Single Frequency

Product Details:

Place of Origin:	CHINA
Brand Name:	HUAWEI
Certification:	CE
Model Number:	AP6010SN

Payment & Shipping Terms:

Minimum Order Quantity:	1 UNIT
Price:	Negotiable
Packaging Details:	NEW IN BOX
Delivery Time:	1-2 DAYS
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	100 UNITS/MONTH

Contact Now

huawei AP6010SN GN Wireless Access Point Huawei General AP Indoor 2 x 2 Single Frequency

Description

Part Number:	AP6010SN	Brand:	Huawei
Antenna Type:	Built-in	Operating Temperature:	–10℃ To 50℃
Maximum Number Of Users:	≤ 128	MIMO: Spatial Streams:	2 X 2:2
Highlight:	cisco poe wifi access point , cisco aironet access point

Huawei AP6010SN-GN Indoor Access Point General AP Indoor 2x2 Single Frequency

The AP6010SN is a wireless access point developed by Huawei, designed to support Wi-Fi connectivity in various environments. It is part of Huawei's AirEngine series, which focuses on providing high-performance wireless networking solutions.

Key Features:

Wi-Fi Standards: Supports the latest Wi-Fi standards (such as Wi-Fi 5 or Wi-Fi 6, depending on the specific model), enabling high-speed wireless connectivity.
Dual-Band Operation: Typically operates on both 2.4 GHz and 5 GHz bands, allowing for flexible deployment and improved capacity.
High Capacity: Capable of handling a large number of concurrent connections, making it suitable for high-density areas like offices, airports, and public venues.
Advanced Security Features: Includes robust security protocols to protect the network and connected devices.

Use Cases:

Enterprise Networking: Ideal for deploying in corporate environments to provide reliable Wi-Fi access for employees and guests.
Public Wi-Fi: Suitable for use in public spaces, such as hotels, airports, and shopping malls, offering high-speed internet access to visitors.
Education: Frequently used in schools and universities to support online learning and connectivity for students and staff.

Benefits:

Easy Management: Supports cloud management and centralized control, simplifying the management of multiple access points.
Seamless Roaming: Offers features that enable users to move around without losing connection, enhancing the user experience.
Energy Efficient: Designed to minimize power consumption while maintaining performance, contributing to overall cost savings.

AP6010SN-GN Overview

Huawei AP6010 Series Access Point AP6010SN-GN boosts the coverage and quality of WLAN connections for delay-sensitive services and high-bandwidth applications, such as VoWLAN and multimedia streaming. Offering both high capacity and pervasive coverage, Huawei AP6010 AP works best in simple building structures with open/semi-open wireless environments that have a high density of users needing quality wireless services scenarios that include enterprise offices, campuses, hospitals, large shopping malls, and exhibition centers.

AP6010SN-GN Specification

AP6010SN-GN Specifications
Technical
Dimensions (H × W × D)	1.9 in. x 7 in. x 7 in. (50 mm x 180 mm x 180 mm)
Weight	0.8 lb. (0.4 kg)
System memory	128 MB DDR2 32 MB flash memory
Power
Power input	DC 12V ± 10% POE Power: -48V DC. PoE function complies with IEEE 802.3af and 802.3at
Maximum power consumption	6.5W Note: Maximum power consumption depends on local laws and regulations
Environment
Operating temperature	14^oF to 122^oF (-10^oC to 50^oC)
Storage temperature	-40^oF to 158^oF (-40^oC to 70^oC)
Humidity	5% to 95% (Non-condensing)
Waterproof grade	IP31
Altitude	196.8 ft. to 16,404.1 ft. (-60m to 5,000m)
Radio
Antenna Type	Built-in
Antenna Gain	4 dBi
Maximum Number of Concurrent Users	128
Maximum Transmit Power	20 dBm You can adjust transmit power to the maximum of 20 dB, in 1 dB steps. Note: Actual transmit power depends on local laws and regulations
Maximum Number of Non-overlapping Channels	802.11b/g ·20 MHz: 3 802.11n ·20 MHz: 3 ·40 MHz: 1 Note: The number of non-overlapping channels allowed varies in different countries. For details, see the Country Codes and Channels compliance status
Channel Rates	802.11b: 1, 2, 5.5, and 11 Mbit/s
	802.11g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s
	802.11n data rate: 2.4 GHz
	GI2 = 800 ns			GI = 400 ns
	20 MHz (Mbit/s)	40 MHz (Mbit/s)		20 MHz (Mbit/s)		40 MHz (Mbit/s)
	6.5 @ MCS10	13.5 @ MCS0		7.2 @ MCS0		15 @ MCS0
	13 @ MCS1	27 @ MCS1		14.4 @ MCS1		30 @ MCS1
	19.5 @ MCS2	40.5 @ MCS2		21.7 @ MCS2		45 @ MCS2
	26 @ MCS3	54 @ MCS3		28.9 @ MCS3		60 @ MCS3
	39 @ MCS4	81 @ MCS4		43.3 @ MCS4		90 @ MCS4
	52 @ MCS5	108 @ MCS5		57.8 @ MCS5		120 @ MCS5
	58.5 @ MCS6	121.5 @ MCS6		65 @ MCS6		135 @ MCS6
	65 @ MCS7	135 @ MCS7		72.2 @ MCS7		150 @ MCS7
	13 @ MCS8	27 @ MCS8		14.4 @ MCS8		30 @ MCS8
	26 @ MCS9	54 @ MCS9		28.9 @ MCS9		60 @ MCS9
	39 @ MCS10	81 @ MCS10		43.3 @ MCS10		90 @ MCS10
	52 @ MCS11	108 @ MCS11		57.8 @ MCS11		120 @ MCS11
	78 @ MCS12	162 @ MCS12		86.7 @ MCS12		180 @ MCS12
	104 @ MCS13	216 @ MCS13		115.6 @ MCS13		240 @ MCS13
	117 @ MCS14	243 @ MCS14		130 @ MCS14		270 @ MCS14
	130 @ MCS15	270 @ MCS15		144.4 @ MCS15		300 @ MCS15
	Note: Modulation Coding Scheme (MCS) index determines: Spatial flow quantity Modulation Coding rate Data rate Guard Interval (GI) indicates the period in nanoseconds the radio listens for between packets
Receiver Sensitivity	802.11b (CCK) ·-97 dBm @ 1 Mbit/s ·-92 dBm @ 2 Mbit/s ·-92 dBm @ 5.5 Mbit/s ·-90 dBm @ 11 Mbit/ss		802.11g (Non-HT20) ·-92 dBm @ 6 Mbit/s ·-91 dBm @ 9 Mbit/s ·-90 dBm @ 12 Mbit/s ·-87 dBm @ 18 Mbit/s ·-83 dBm @ 24 Mbit/s ·-80 dBm @ 36 Mbit/s ·-76 dBm @ 48 Mbit/s ·-74 dBm @ 54 Mbit/s		802.11n (HT20) ·-92 dBm @ MCS0/8 ·-89 dBm @ MCS1/9 ·-86 dBm @ MCS2/10 ·-82 dBm @ MCS3/11 ·-79 dBm @ MCS4/12 ·-74 dBm @ MCS5/13 ·-73 dBm @ MCS6/14 ·-71 dBm @ MCS7/15		802.11n (HT40) ·-89 dBm @ MCS0/8 ·-86 dBm @ MCS1/9 ·-83 dBm @ MCS2/10 ·-79 dBm @ MCS3/11 ·-76 dBm @ MCS4/12 ·-72 dBm @ MCS5/13 ·-70 dBm @ MCS6/14 -68 dBm @ MCS7/15
