Product Details:
|
| Part Number: | WS-C3650-24TS-S | Brand: | CISCO |
|---|---|---|---|
| Enclosure Type: | Rack-mountable - 1U | Uplink Interfaces: | 4 X 1G SFP Uplinks |
| Ports: | 24x 10/100/1000 POE+ Ethernet Ports | Stack Bandwidth: | 160 Gpbs |
| Feature Set: | IP Base | RAM: | 4 GB |
| Highlight: | optical ethernet switch,fiber optic network switch |
||

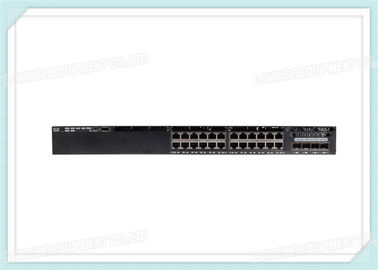

| Cisco WS-C3650-24TS-S Catalyst 3650 24 Port Data 4x1G Uplink IP Base | |
| Device Type | Switch - 24 ports - L3 - Managed - stackable |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 + 4 x SFP |
| Performance | Switching capacity: 88 Gbps ¦ Forwarding performance: 65.47 Mpps |
| Features | Layer 2 switching, ARP support, trunking, VLAN support, IGMP snooping, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, |
| General | |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP) |
| Device Type | Switch - 24 ports - L3 - Managed - stackable |
| Enclosure Type | Desktop, rack-mountable 1U |
| Flash Memory | 2 GB |
| Mac Address Table Size | 32000 entries |
| Performance | Switching capacity: 88 Gbps ¦ Forwarding performance: 65.47 Mpps |
| Ram | 4 GB |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI |
| Status Indicators | Port transmission speed, port duplex mode, system, active, status |
| Dimensions & Weight | |
| Depth | 44.8 cm |
| Height | 4.4 cm |
| Weight | 6.87 kg |
| Width | 44.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 96% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | -5 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x Stacking Module |
| Interfaces | 24 x 1000Base-T - RJ-45 ¦ 1 x USB - Type A ¦ 1 x serial (console) - RJ-45 - management ¦ 1 x management (Gigabit LAN) - RJ-45 - management ¦ 1 x management (mini-USB) - Type B - management ¦ 4 x 1000Base-X - SFP - uplink |
| Manufacturer Warranty | |
| Service Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - phone consulting - 90 days |
| Miscellaneous | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP) |
| Mtbf | 661,800 hours |
| Rack Mounting Kit | Included |
| Mounting Kit | Included |
| Software Included | Cisco IOS IP Base |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Power Redundancy | Optional |
| Power Provided | 250 Watt |
| Power Installed Qty | 1 (installed) / 2 (max) |
| Power Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Power Device | Internal power supply - hot-plug |
| Power Features | Layer 2 switching, ARP support, trunking, VLAN support, IGMP snooping, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, |
| Bundled Services | Limited lifetime warranty |
| Manufacturer Warranty | Limited lifetime warranty |
| Dimensions | x |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Routing Protocol | OSPF, RIP-1, RIP-2, static IP routing, RIPng |
| Jumbo Frame Support | 9198 bytes |
| Capacity | IPv4 routes: 24000 ¦ NetFlow entries: 24000 ¦ Virtual interfaces (VLANs): 1000 ¦ Switched virtual interfaces (SVIs): 1000 |
