Product Details:
|
| Brand: | CISCO | Model: | ISR4221-SEC/K9 |
|---|---|---|---|
| Bundle: | Cisco ISR 4221 SEC Bundle With SEC Lic | RJ-45-based Ports: | 2 |
| SFP-based Ports: | 1 | Flash Memory: | 8 GB |
| Rack Height: | 1 RU | Onboard ISC Slot: | No |
| Highlight: | cisco network router,cisco modular router |
||

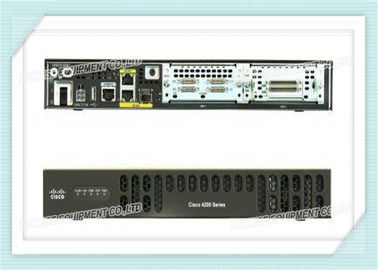

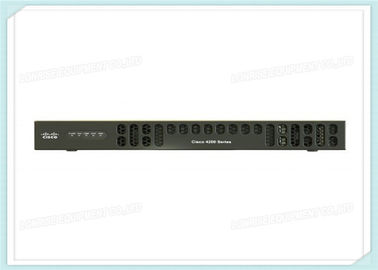

Cisco ISR4221-SEC/K9 Router Cisco ISR 4221 SEC Bundle with SEC license
ISR4221-SEC/K9 is the Cisco 4221 Integrated Services router is design to deliver advanced services to the small enterprise branch environment. It bundles Security Bundle with Security License.
ISR4221-SEC/K9 Specification
Cisco ISR4221-SEC/K9 Specification |
|
| Bundle | Cisco ISR 4221 SEC Bundle with SEC lic |
| Aggregate Throughput | 35 Mbps to 75 Mbps |
| Total onboard WAN or LAN 10/100/1000 ports | 2 |
| RJ-45-based ports | 2 |
| SFP-based ports | 1 |
| Enhanced service-module slots | 0 |
| Doublewide service-module slots | 0 |
| NIM slots | 2 |
| OIR (all I/O modules) | No |
| Onboard ISC slot | No |
|
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) |
4 GB |
| Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | 4 GB |
| Default memory DDR3 ECC DRAM (data plane) | NA |
| Maximum memory DDR3 ECC DRAM (data plane) | NA |
| Default memory DDR3 ECC DRAM (control/services plane) | NA |
| Maximum memory DDR3 ECC DRAM (control/services plane) | NA |
| Default flash memory | 8 GB |
| Maximum flash memory | 8 GB |
| External USB 2.0 slots (type A) | 1 |
| USB console port -type B mini (up to 115.2 kbps) | 0 |
| Serial console port - RJ45 (up to 115.2 kbps) | 1 (combo CON/AUX port) |
|
Serial auxiliary port - RJ45 (up to 115.2 kbps) |
1 (combo CON/AUX port) |
| Power-supply options | External: AC Only |
| Redundant power supply | N/A |
| AC input voltage | 100 to 240 VAC autoranging |
| AC input frequency | 47 to 63 Hz |
| AC input current range, AC power supply (maximum) | 1.5 to 0.6A |
| AC input surge current | 90 A peak and less than 3 Arms per half cycle |
| Typical power (no modules) (watts) | 24 |
| Maximum power with AC power supply (watts) | 90 |
| Maximum power with PoE power supply (platform only) (watts) | NA (no PoE support) |
| Maximum endpoint PoE power available from PoE power supply (watts) | NA (no PoE support) |
FAQ
1. Where do your products come from?
All of our products are from Cisco/Huawei distribution , Cisco/Huawei partner directly. We are Cisco partner at local, with cisco verified certification.
2. If all equioments I can buy service from local cisco ?
For all equipments you can buy service from local, because our goods are smart net free, all with clean serial number.
3. How to ship the goods?
Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be dispatched by express delivery door to door.
4. What’s your payment term?
We always accept 10% advance payment. For long term cooperation, we can consider to apply credit accordingly.
Related products
ISR4321/K9 ISR4321-SEC/K9 ISR4321-V/K9
ISR4331-AX/K9 ISR4331-SEC/K9 ISR4331-VSEC/K9
ISR4351/K9 ISR4351-V/K9 ISR4351-AXV/K9
ISR4431-SEC/K9 ISR4431-V/K9 ISR4431-VSEC/K9
ISR4451-X/K9 ISR4451-X-V/K9 ISR4451-X-AX/K9
